Home >> Mazda >> 2008 >> B4000 Base, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Safety Belt Buckle - Front Center >> Notes

Safety Belt Buckle - Front Center: Notes

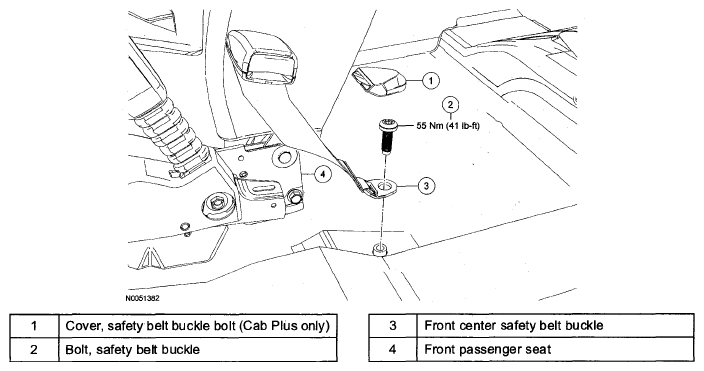

Fig 1: Safety Belt Buckle Replacement Components - Front Center With Torque Specifications

G04930912
