Front Function Selector Switch Assembly Connector End View (C294D)
Front Function Selector Switch Assembly Connector End View (C294D)

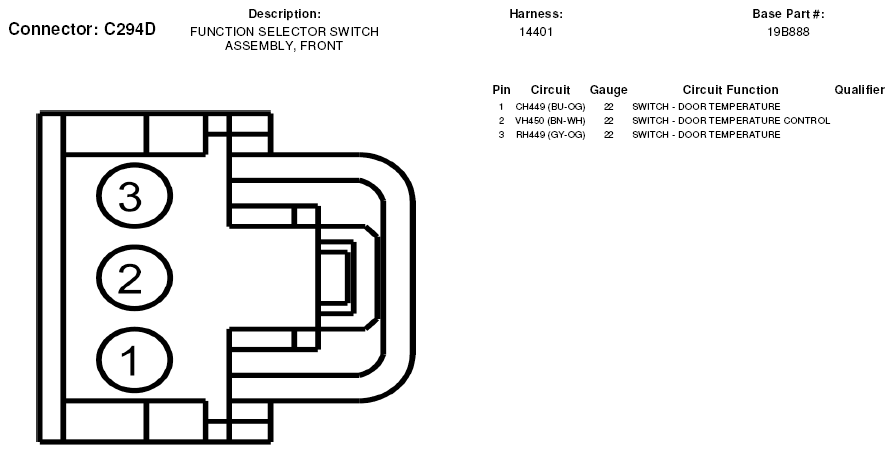

Fig 1: Front Function Selector Switch Assembly Connector End View (C294D)
