Anti-Lock Brake System Control Module Connector End View (C135)
Anti-Lock Brake System Control Module Connector End View (C135)

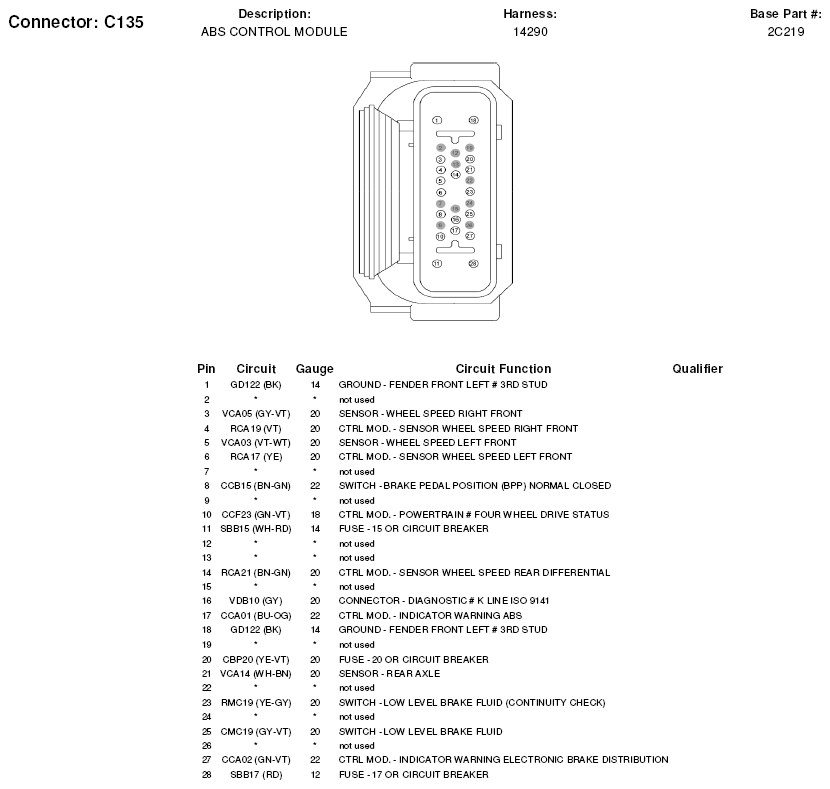

Fig 1: Anti-Lock Brake System Control Module Connector End View (C135)
