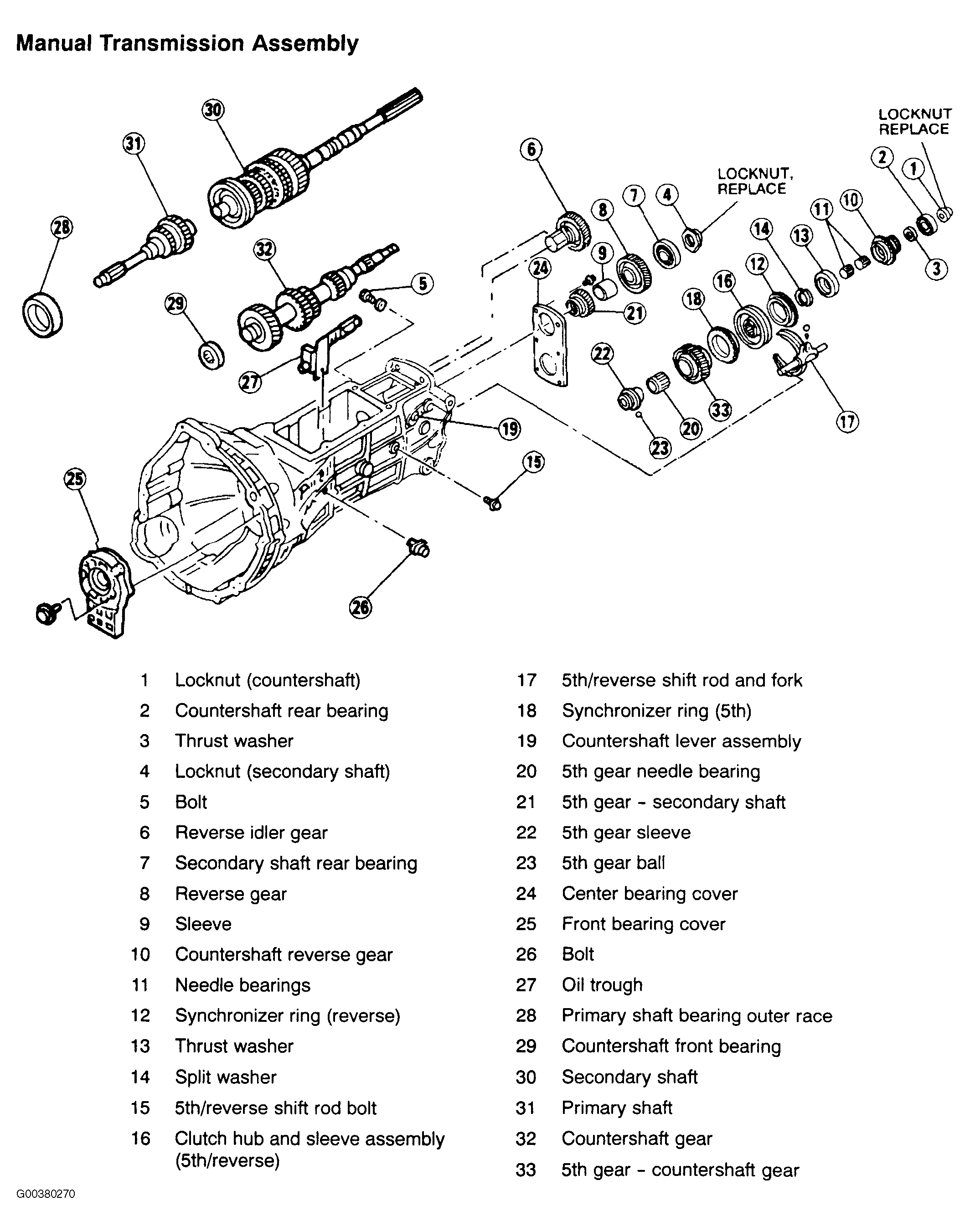

Section 1 (Manual Transmission [Overhaul M5OD-R1)): Description
WARNING: This page is about a different variant/trim than selected.
This Mazda-built transmission is a fully synchronized, 5-speed, top shift transmission. Fifth gear is an overdrive ratio. All gear changes, including reverse are accomplished with synchronizer sleeves. Transmission case is aluminum alloy with steel bearing race inserts.
