Smart Junction Box Connector End View (C2280D)

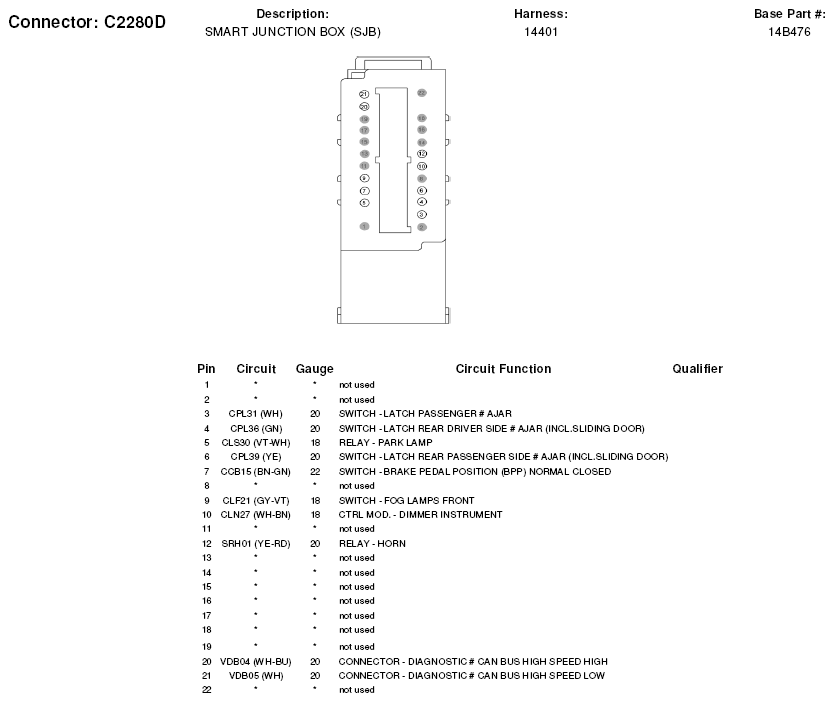

Fig 1: Smart Junction Box Connector End View (C2280D)

G05603220
