Smart Junction Box Connector End View (C2280B)

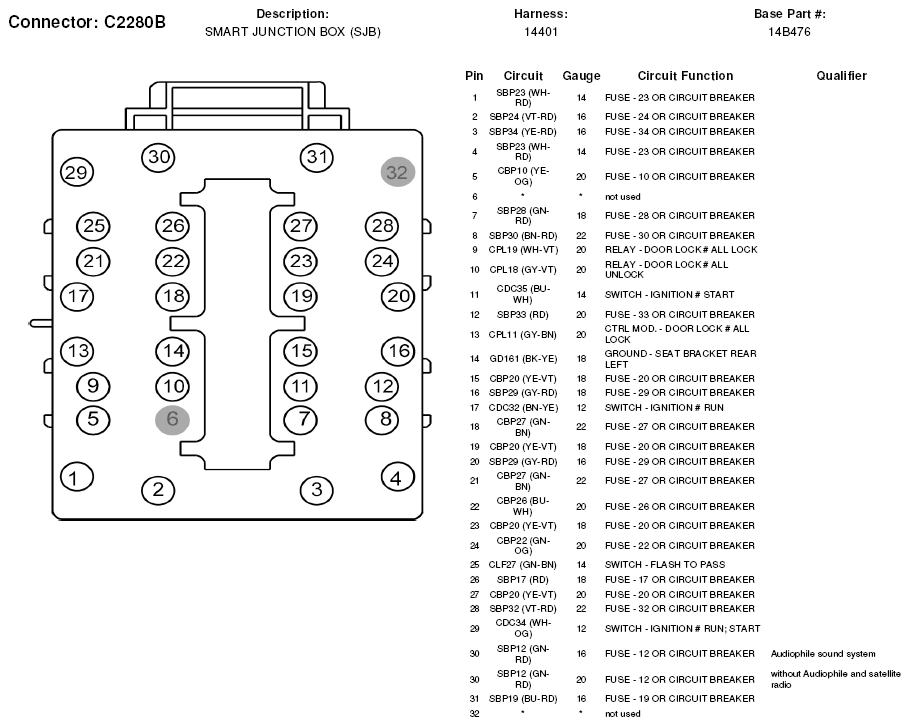

Fig 1: Smart Junction Box Connector End View (C2280B)

G05603218
