Smart Junction Box Connector End View (C2280A)

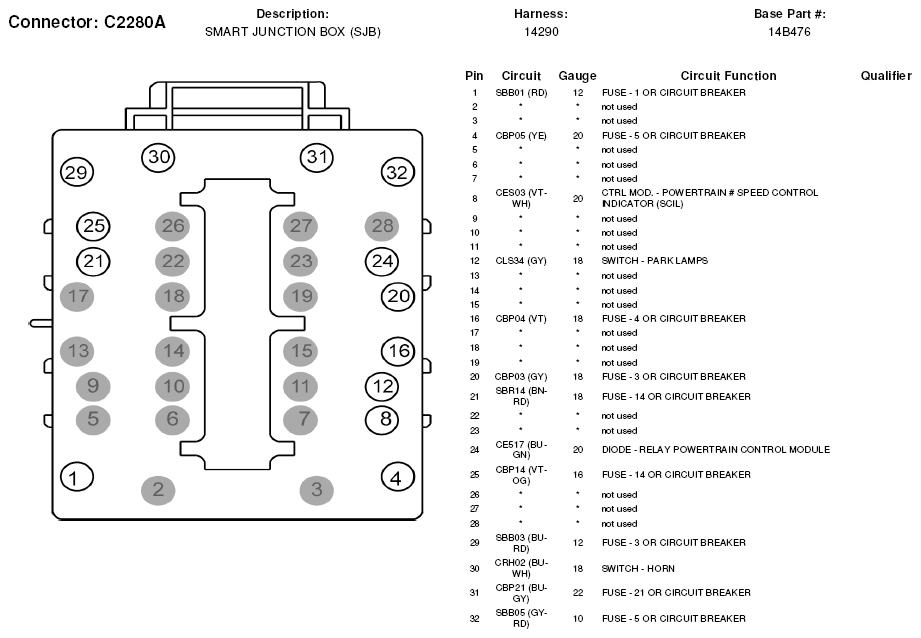

Fig 1: Smart Junction Box Connector End View (C2280A)

G05603217
