Powertrain Control Module (2 Of 2) Connector End View (C175B) (2 Of 2)
Powertrain Control Module (2 Of 2) Connector End View (C175B) (2 Of 2)

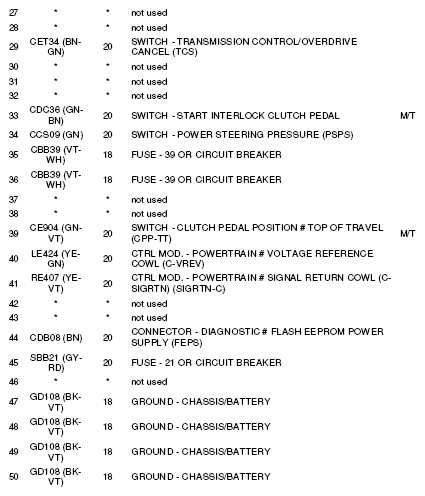

Fig 1: Powertrain Control Module (2 Of 2) Connector End View (C175B) (2 Of 2)
