Connector End Views
>>
Powertrain Control Module (1 Of 2) Connector End View (C175E) (1 Of 2)
Powertrain Control Module (1 Of 2) Connector End View (C175E) (1 Of 2)

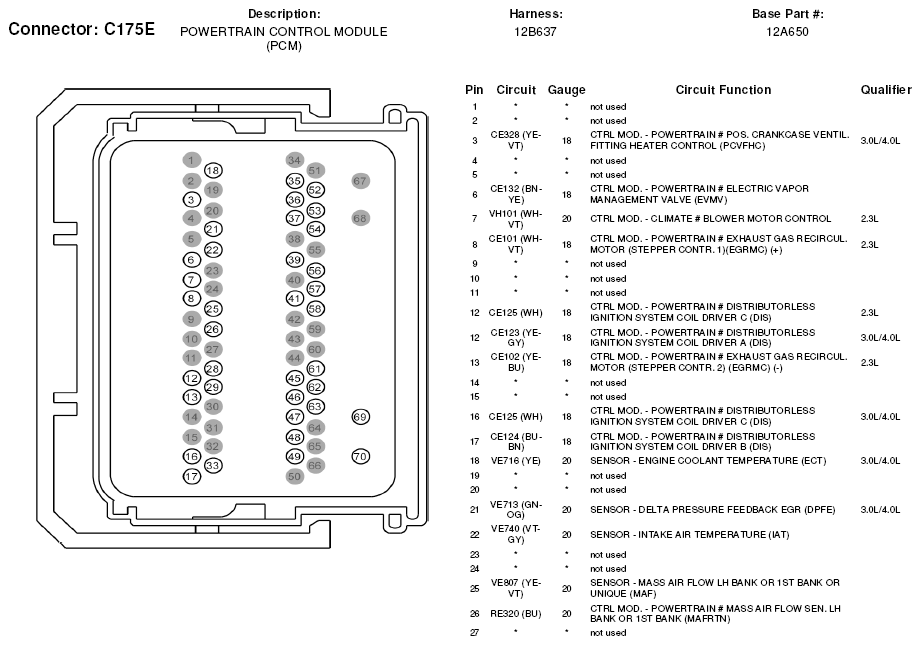

Fig 1: Powertrain Control Module (1 Of 2) Connector End View (C175E) (1 Of 2)
