Output Shaft Speed Sensor Connector End View (C193)

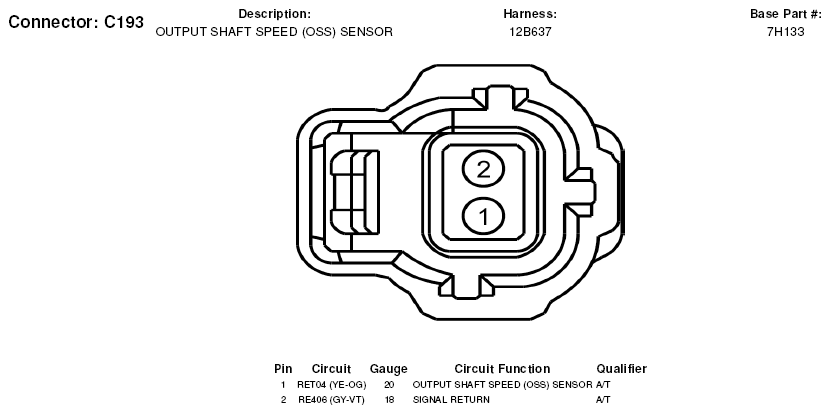

Fig 1: Output Shaft Speed Sensor Connector End View (C193)

G05603068
