Output Shaft Speed Sensor Connector End View (C1107)

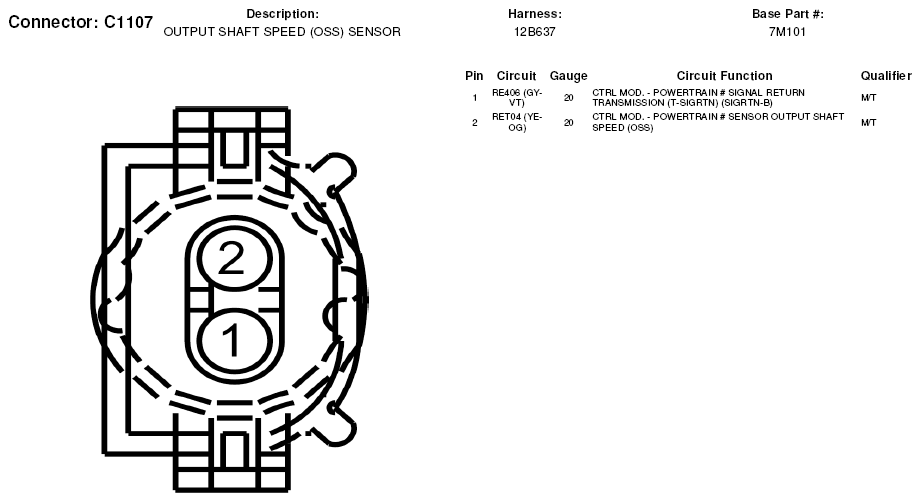

Fig 1: Output Shaft Speed Sensor Connector End View (C1107)

G05603181
