Left Front Wheel Speed Sensor Connector End View (C150)
Left Front Wheel Speed Sensor Connector End View (C150)

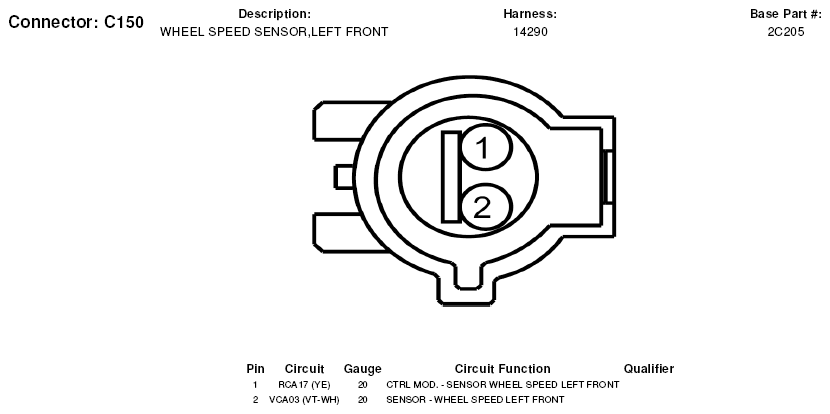

Fig 1: Left Front Wheel Speed Sensor Connector End View (C150)
