Left Front Impact Severity Sensor Connector End View (C1465)
Left Front Impact Severity Sensor Connector End View (C1465)

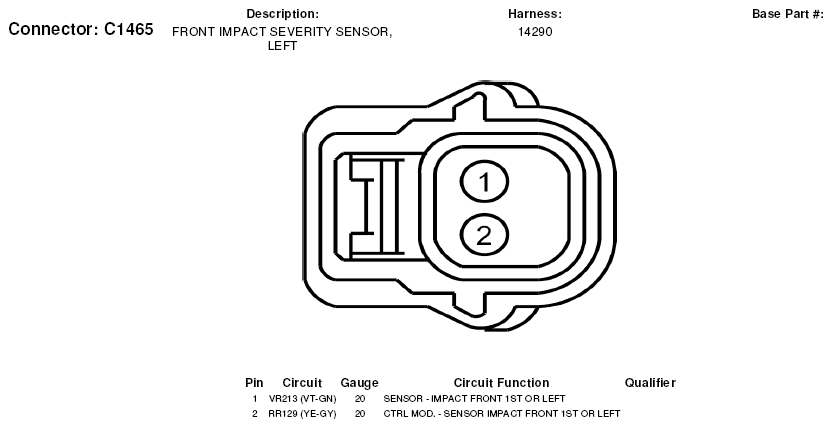

Fig 1: Left Front Impact Severity Sensor Connector End View (C1465)
