Indicator Flasher Relay Connector End View (C2047)

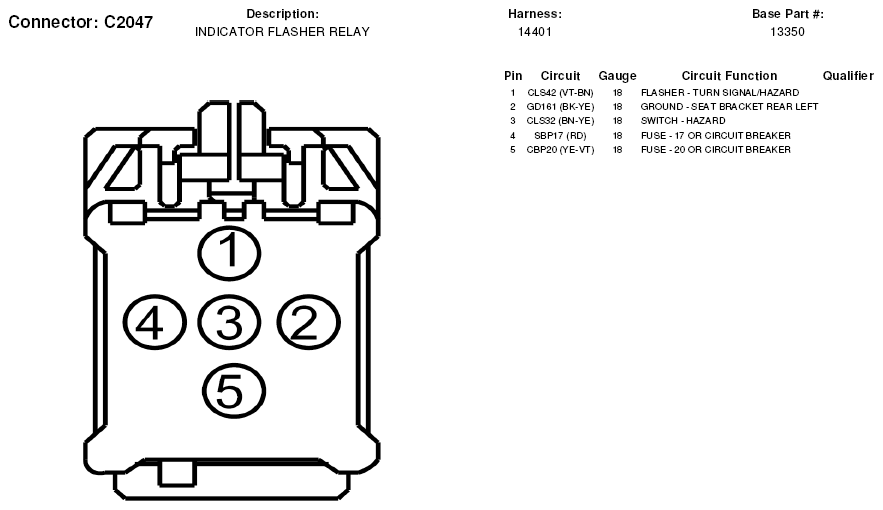

Fig 1: Indicator Flasher Relay Connector End View (C2047)

G05603210
