Engine Coolant Temperature Sensor Connector End View (C1064)

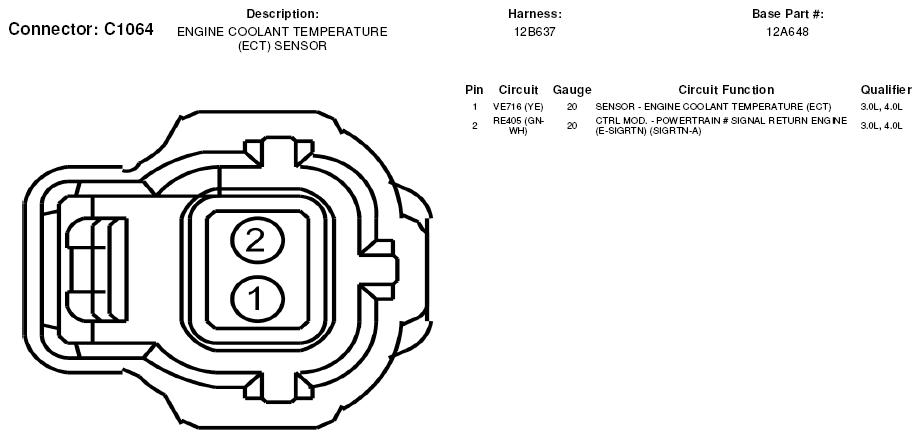

Fig 1: Engine Coolant Temperature Sensor Connector End View (C1064)

G05603171
