Removal and Installation

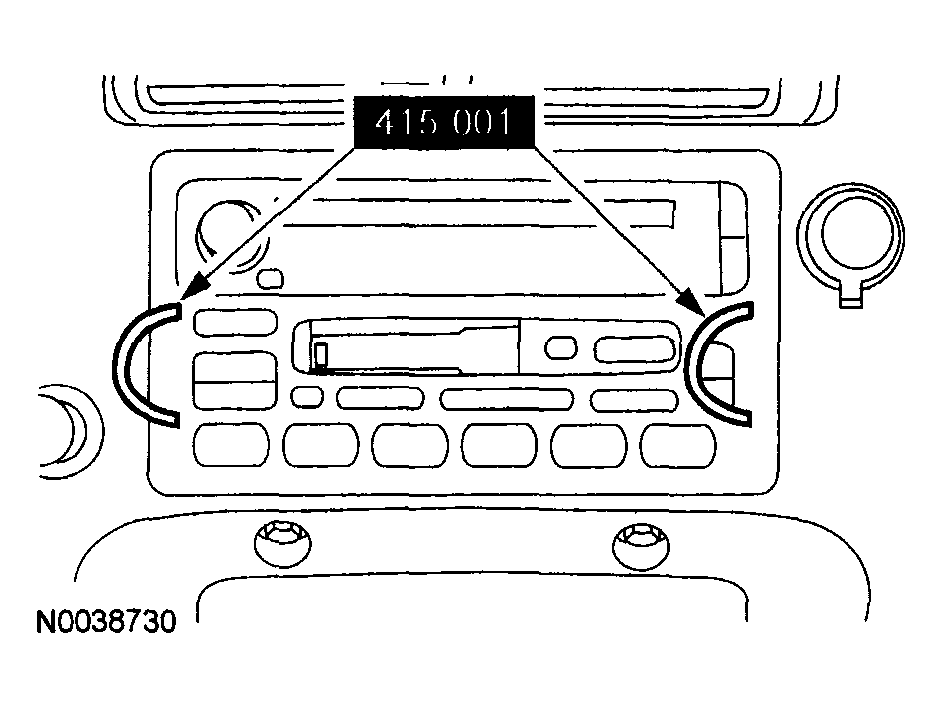

Fig 1: Removing Audio Unit Using SST 415-001

Courtesy of MAZDA MOTORS CORP.

Using the SST 415-001, remove the audio unit.
- Disconnect the electrical connector(s) and the antenna cable.
To install, reverse the removal procedure.
