Transmission Control Switch Connector End View (C279)

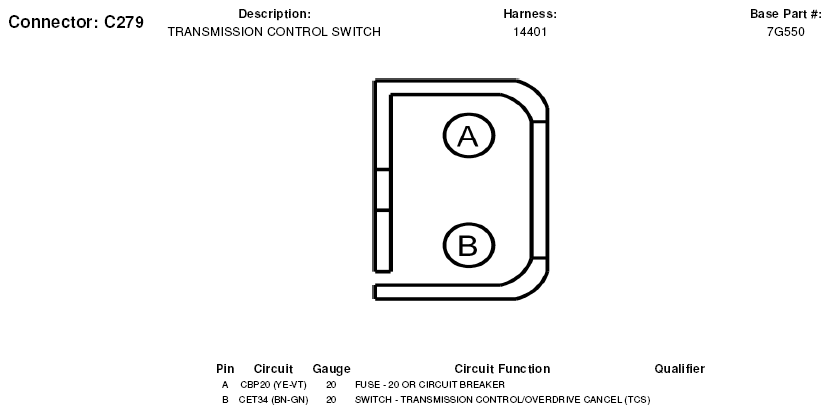

Fig 1: Transmission Control Switch Connector End View (C279)

G05603099
