Map Light Inspection

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the map light.(See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the map light terminals is as indicated in Fig 1.
- If not as indicated in Fig 1, replace the map light.

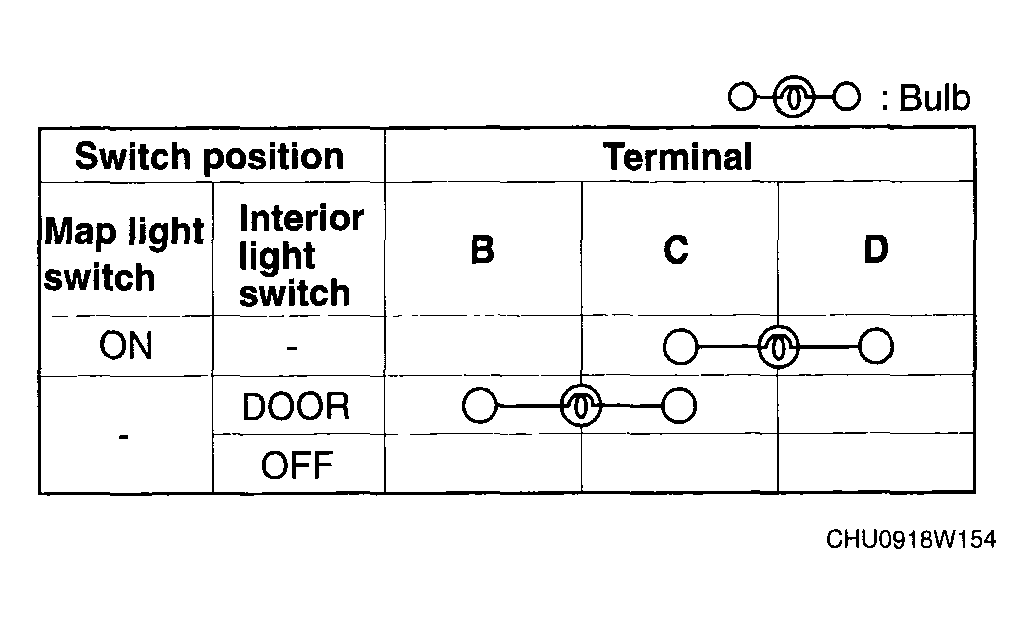

  Fig 1: Map Light Switch Terminal Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Map Light Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
