Front Fog Light Switch Inspection

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION. )
Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the light switch terminals is as indicated in Fig 1.
- If not as indicated in Fig 1, replace the light switch.

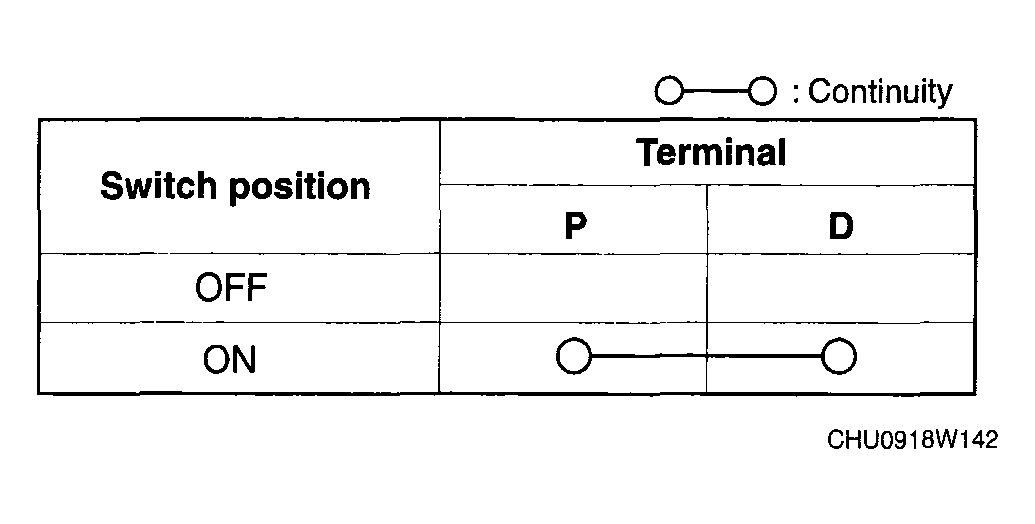

  Fig 1: Front Fog Light Switch Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Front Fog Light Switch Connector Terminal
  Courtesy of MAZDA MOTORS CORP.
