Front Auto Leveling Sensor Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Jack up the vehicle and remove the wheel and tire.
  3. Disconnect the connector.
  4. Remove the bolts and then remove the front auto leveling sensor.
  5. Install in the reverse order of removal.

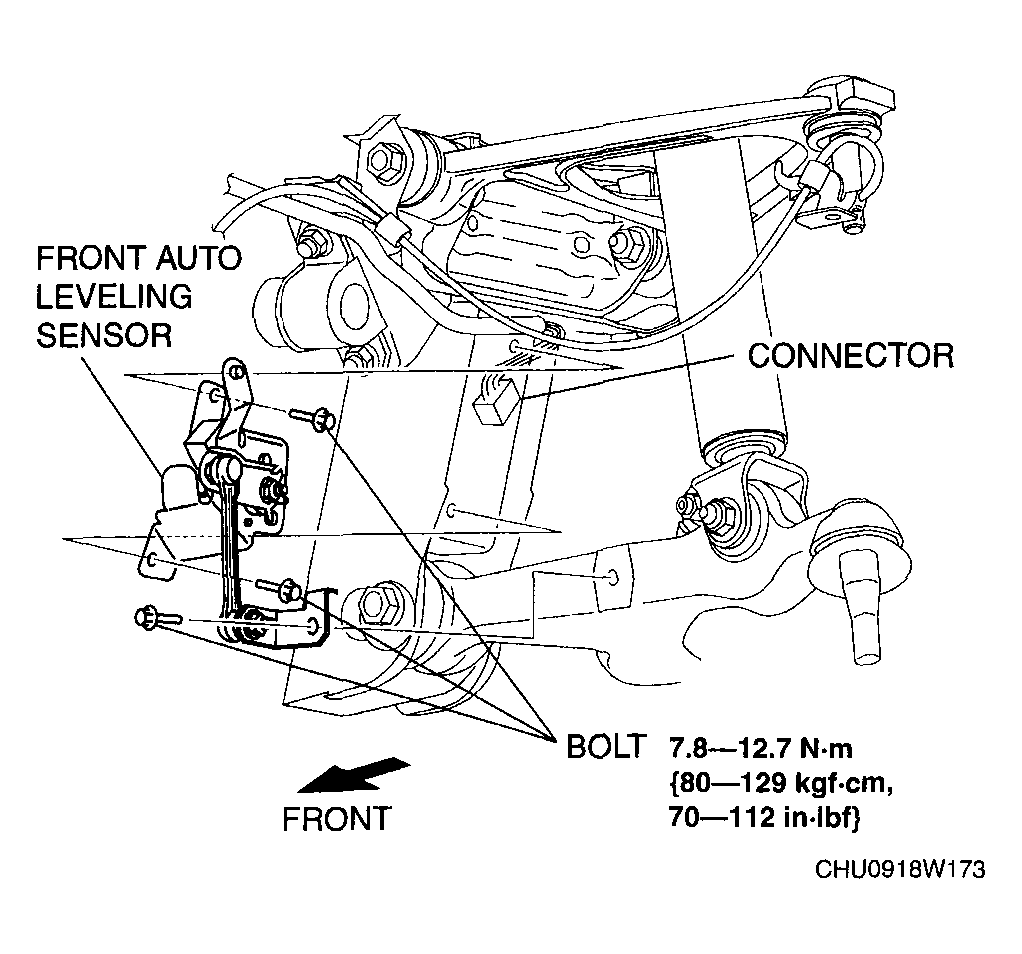

    Fig 1: Front Auto Leveling Sensor With Torque Specifications
    G04564512Courtesy of MAZDA MOTORS CORP.
