Refrigerant Pressure Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)
  3. Hold the piping block with pliers or a similar tool and loosen the refrigerant pressure switch using a wrench.
  4. Remove in the order indicated in Fig 1.

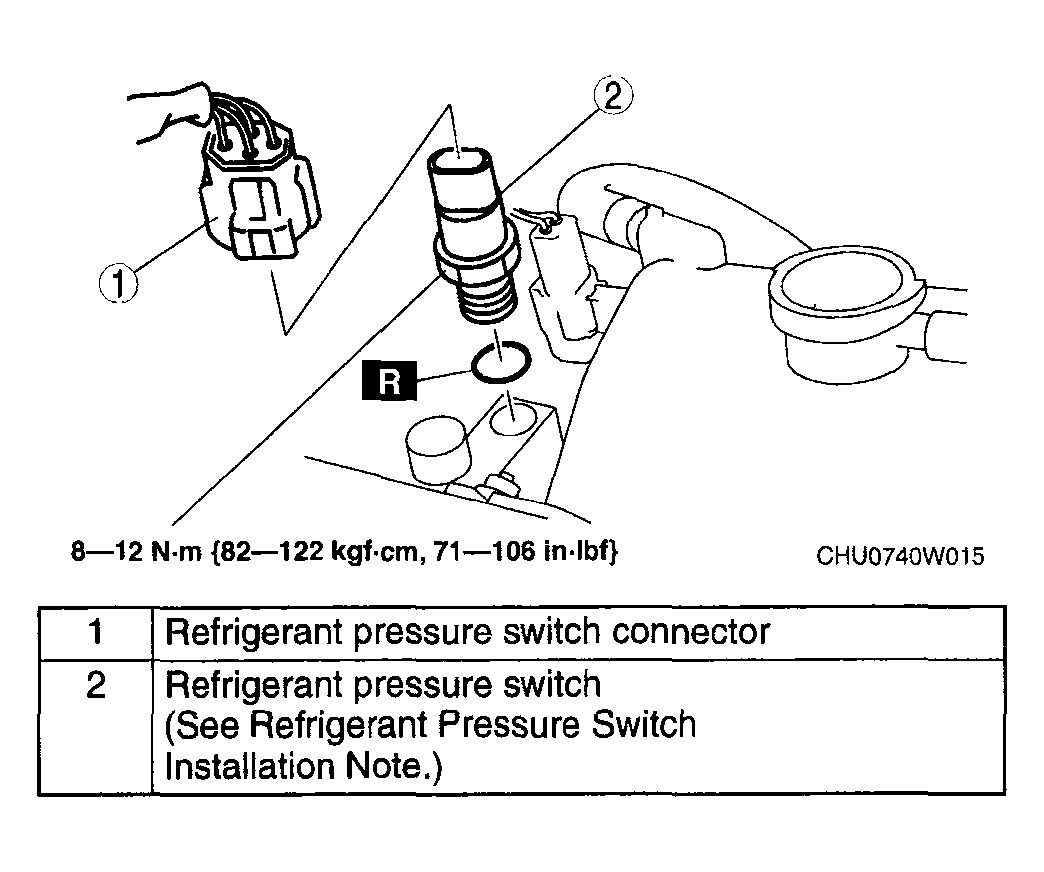

    Fig 1: Refrigerant Pressure Switch Connector & Pressure Switch With Torque Specifications
    G04563941Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
