HVAC Control System

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

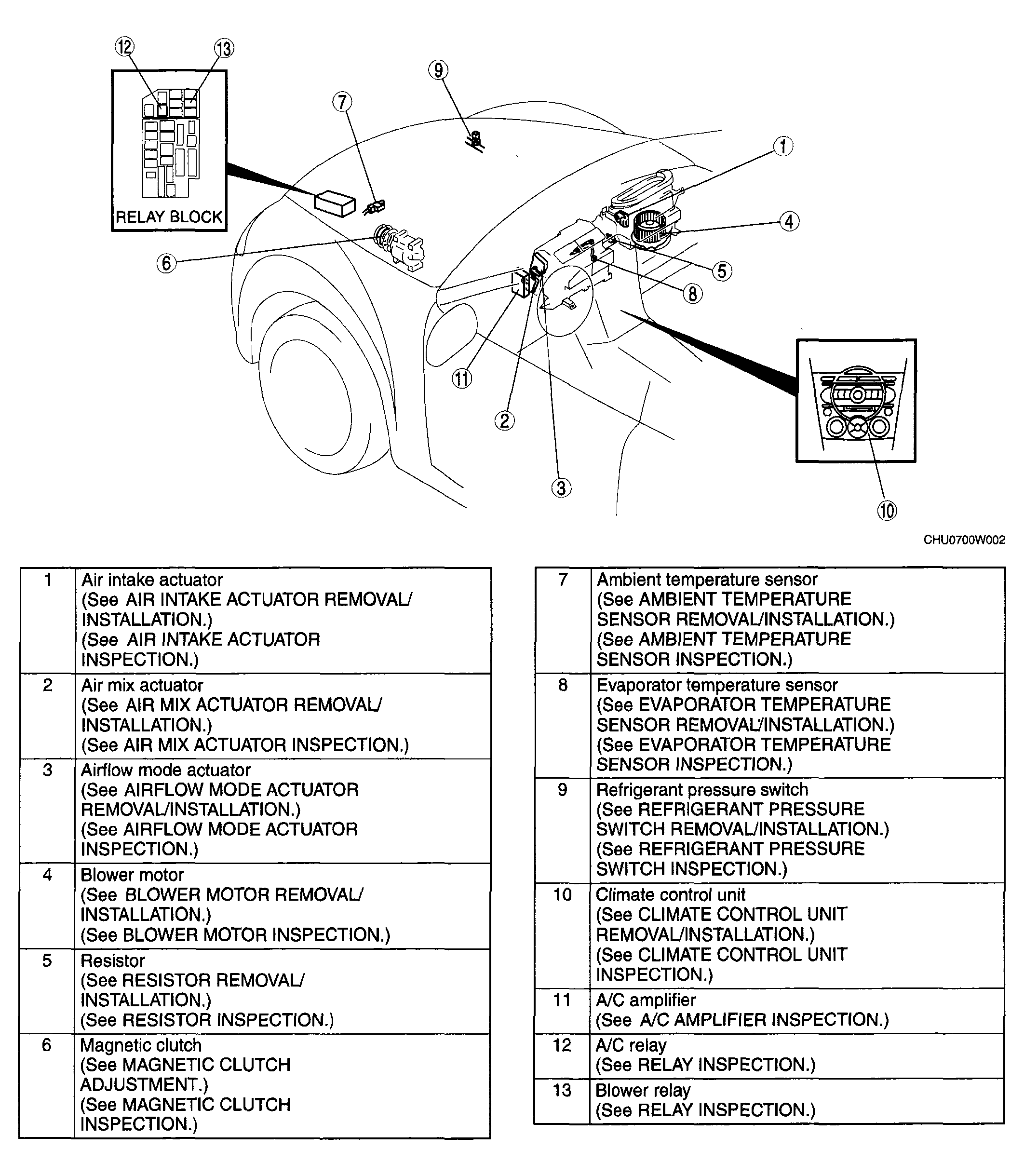

Fig 1: Identifying HVAC Control System
G04563922Courtesy of MAZDA MOTORS CORP.
