Temperature Control Dial Inspection
WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- After performing the on-board diagnostic test procedure, turn on the audio.
- Press the audio POWER and SCAN (upper) buttons simultaneously.

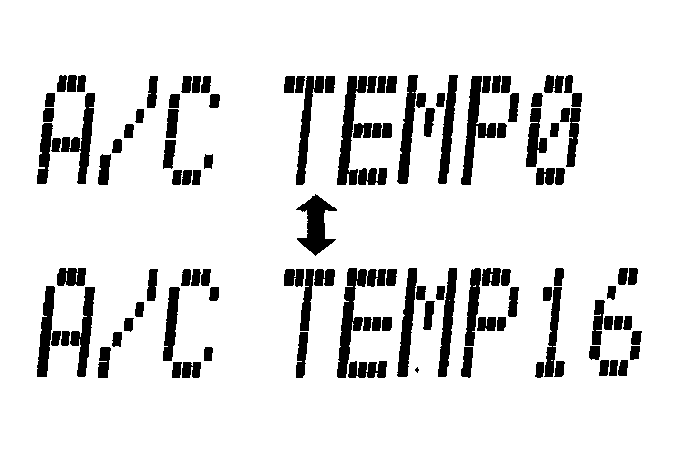

- "A/C TEMP--" is displayed on the information display.
- Inspect according to the TEMPERATURE CONTROL DIAL INSPECTION CHART :TEMPERATURE CONTROL DIAL INSPECTION CHART
INSPECTION DISPLAY ACTION Turn the temperature control dial. Does the numeral on the information display change from 0 to 16? The temperature control dial is normal. Except above Replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION .) - Disconnect the jumper wire or the similar device connected to the A/C amplifier connector (24-pin) to exit the on-board diagnostic test function.
