Output Signal Inspection
WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- After performing the on-board diagnostic test procedure, inspect according to the OUTPUT SIGNAL INSPECTION CHART :OUTPUT SIGNAL INSPECTION CHART

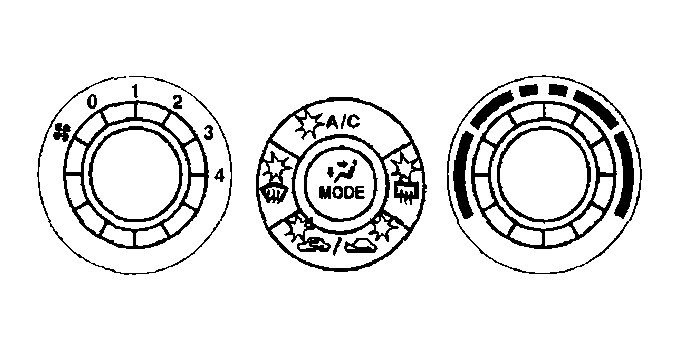

INSPECTION DISPLAY ACTION Inspect the climate control switch indicator lights. All indicator lights illuminate. Output signal from the audio unit is normal. Except above Replace the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION .) - Disconnect the jumper wire or the similar device connected to the A/C amplifier connector (24-pin) to exit the on-board diagnostic test function.
