Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove in the order indicated in Fig 1.

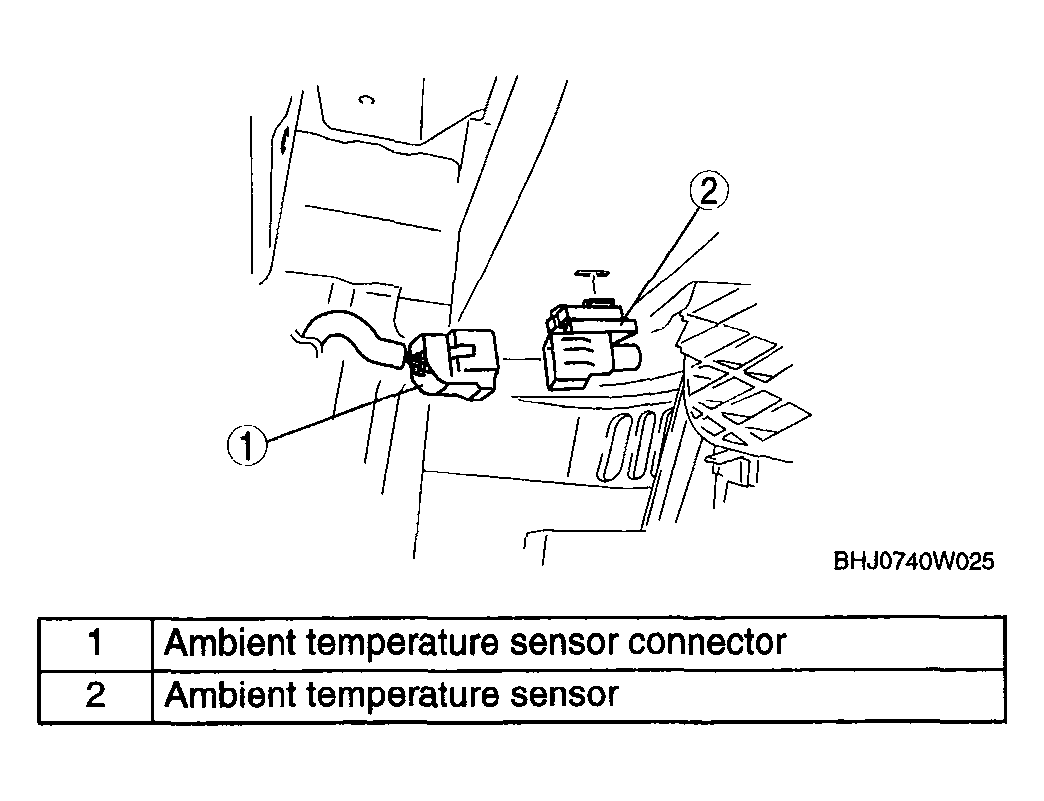

    Fig 1: Identifying Ambient Temperature Sensor
    G04563938Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
