Control System Location Index [L3 With TC]

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

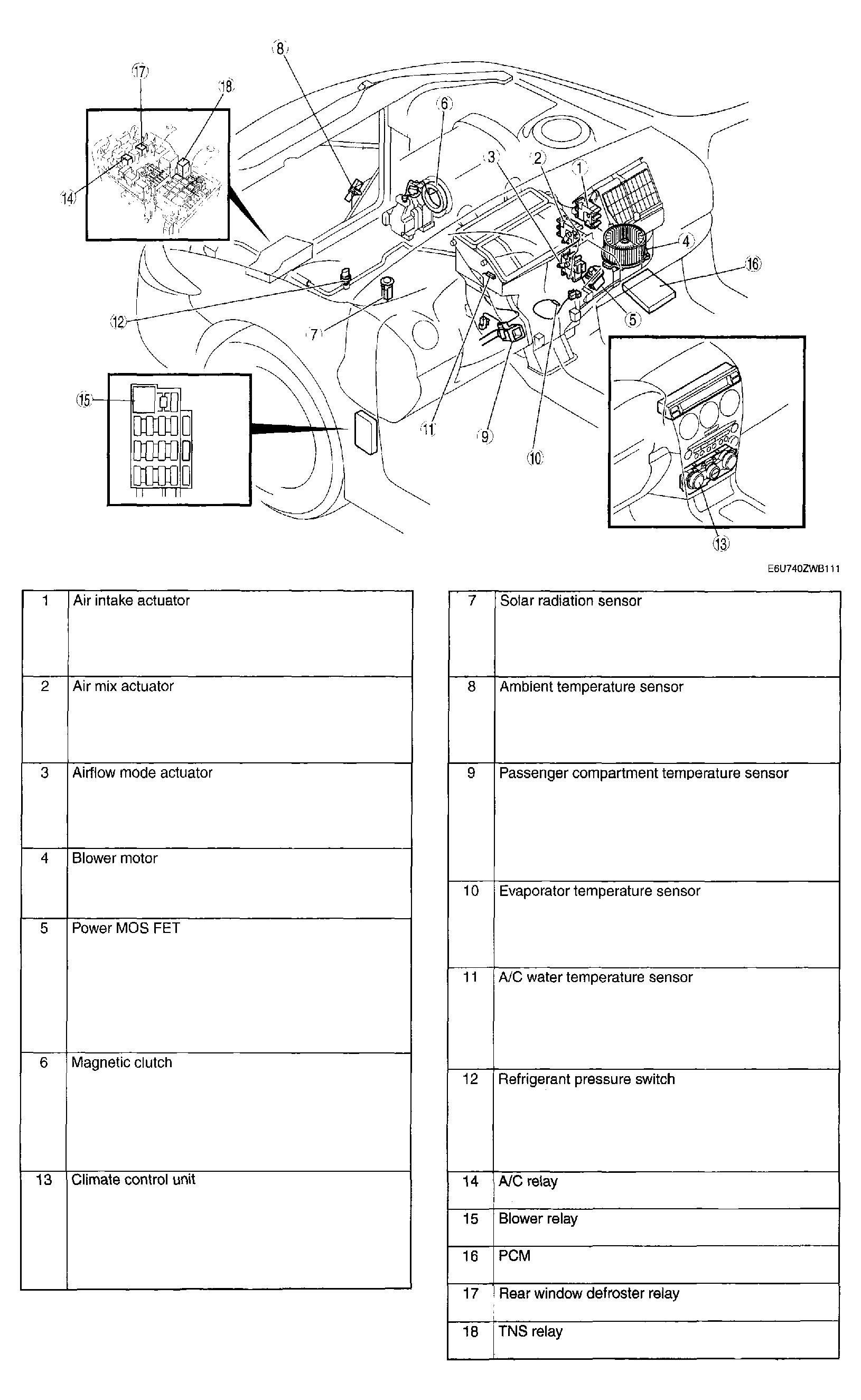

Fig 1: Locating Control System Components (L3 With TC)

Courtesy of MAZDA MOTORS CORP.
