Wire Assembly Note

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the wire to the position as shown in the figure.

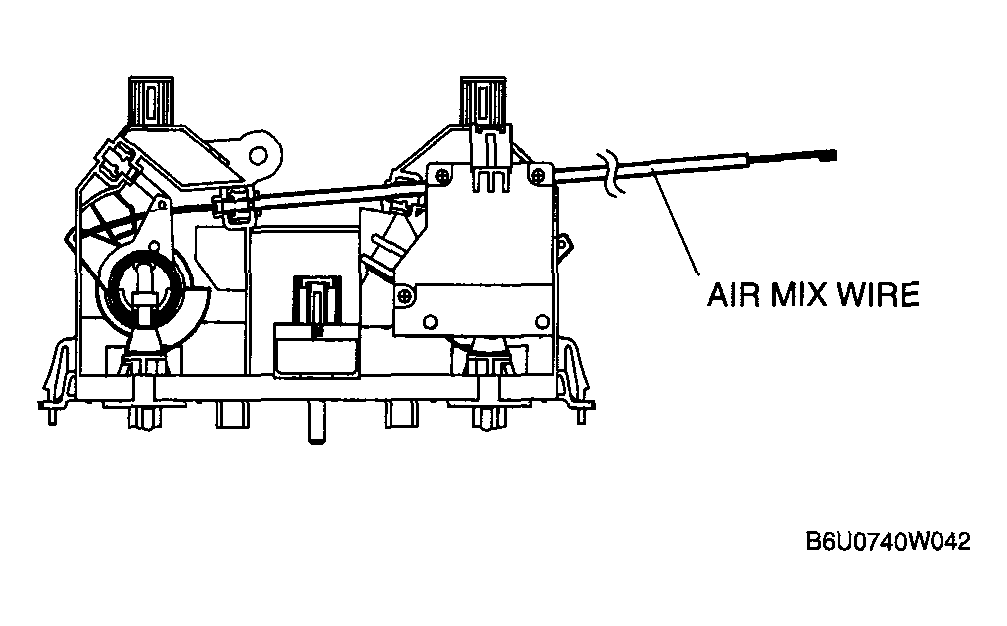

Fig 1: Positions For Assembling Wire
Courtesy of MAZDA MOTORS CORP.
