Climate Control Unit Disassembly/Assembly [L3, AJ]: Notes

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

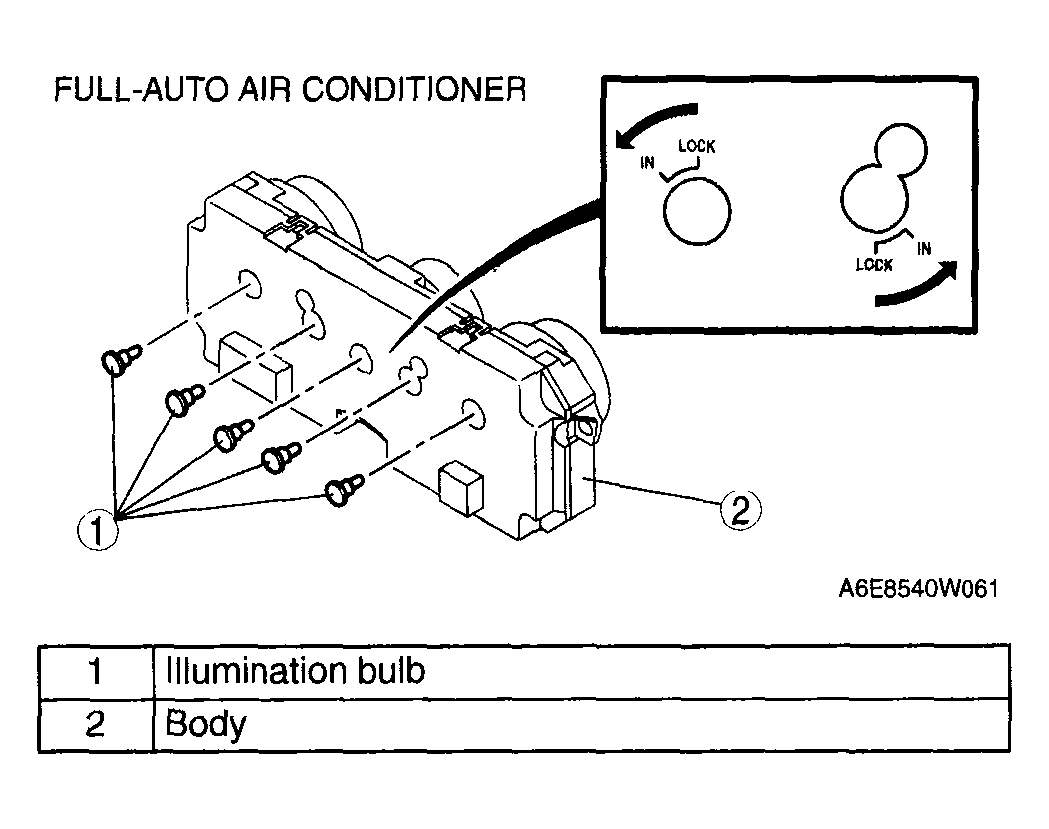

Fig 1: Exploded View Of Climate Control Unit - Full-Auto Air Conditioner (L3, AJ)
Courtesy of MAZDA MOTORS CORP.

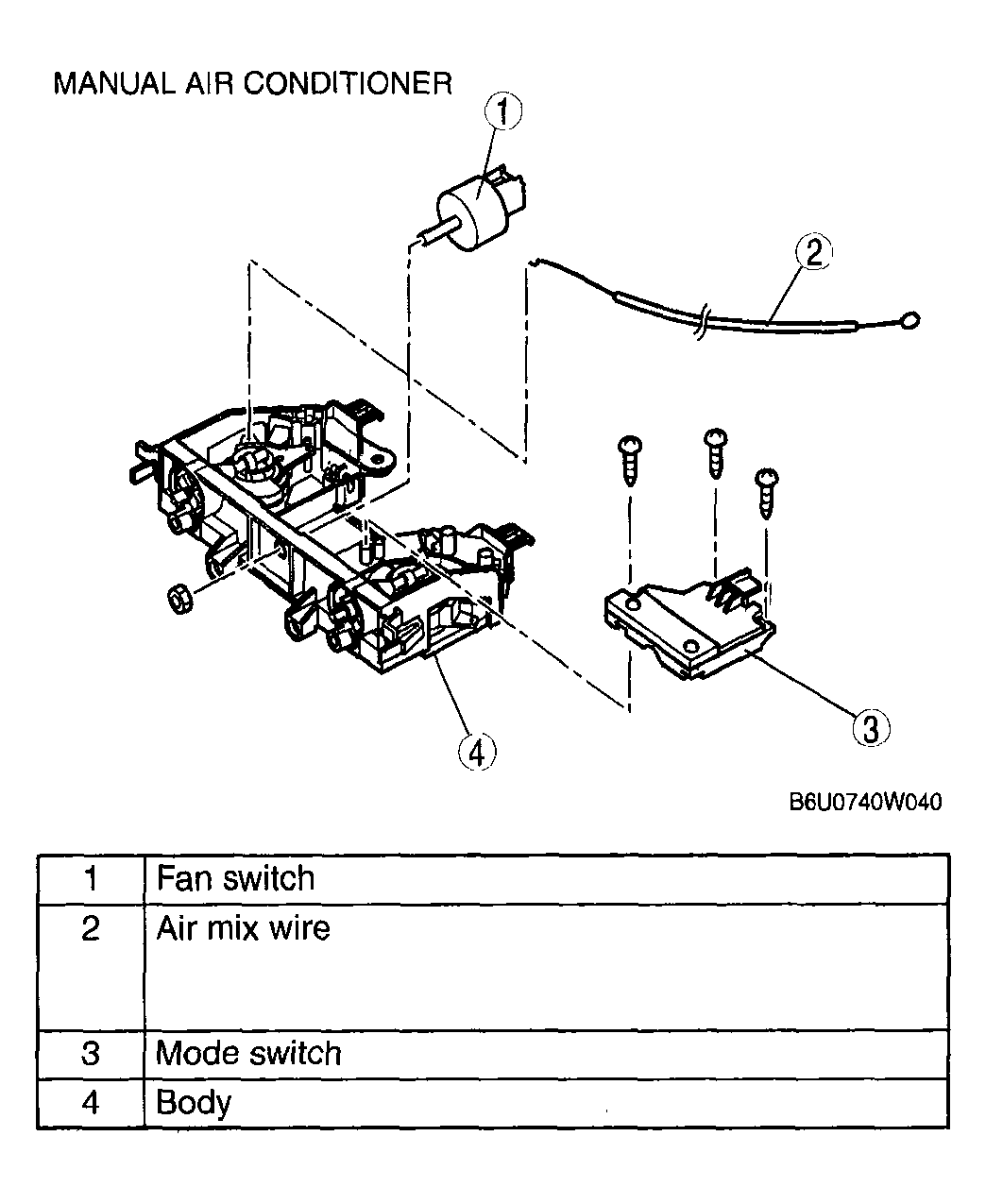

Fig 2: Exploded View Of Climate Control Unit - Manual Air Conditioner (L3, AJ)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
