Climate Control Unit Disassembly/Assembly [L3 With TC]

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

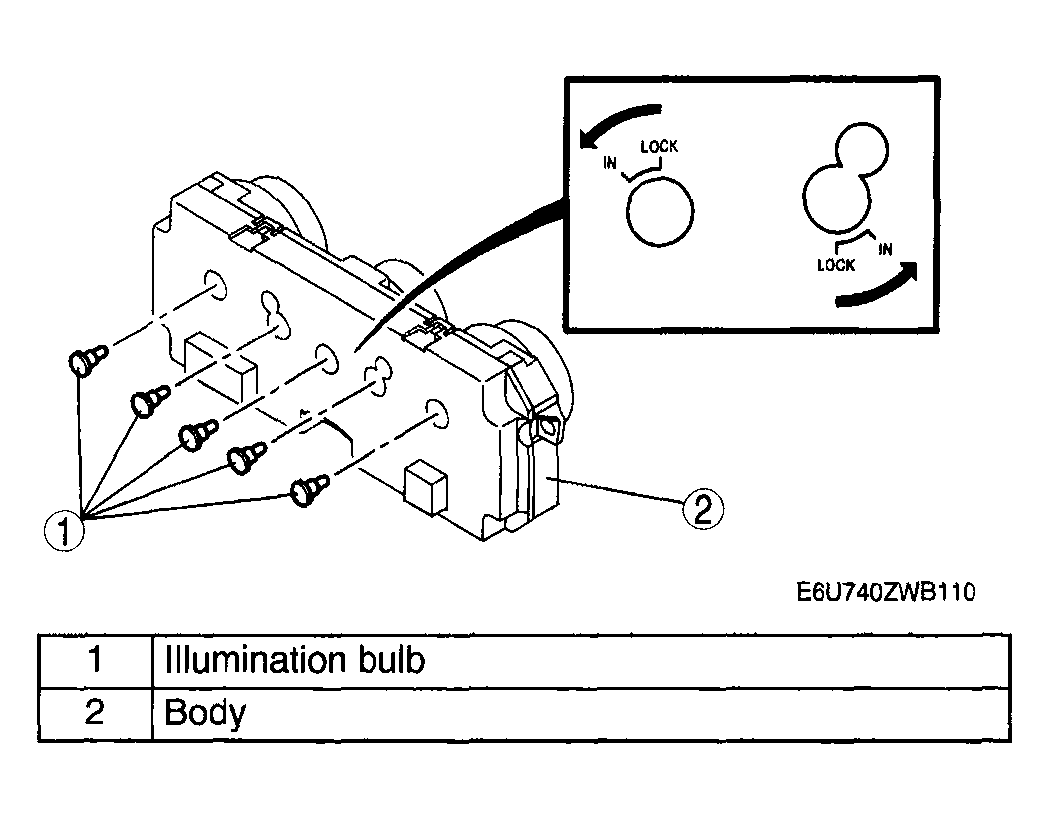

Fig 1: Exploded View Of Climate Control Unit (L3 With TC)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
