Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the radiator grille. See RADIATOR GRILLE REMOVAL/INSTALLATION.
  3. Remove in the order indicated in the table.

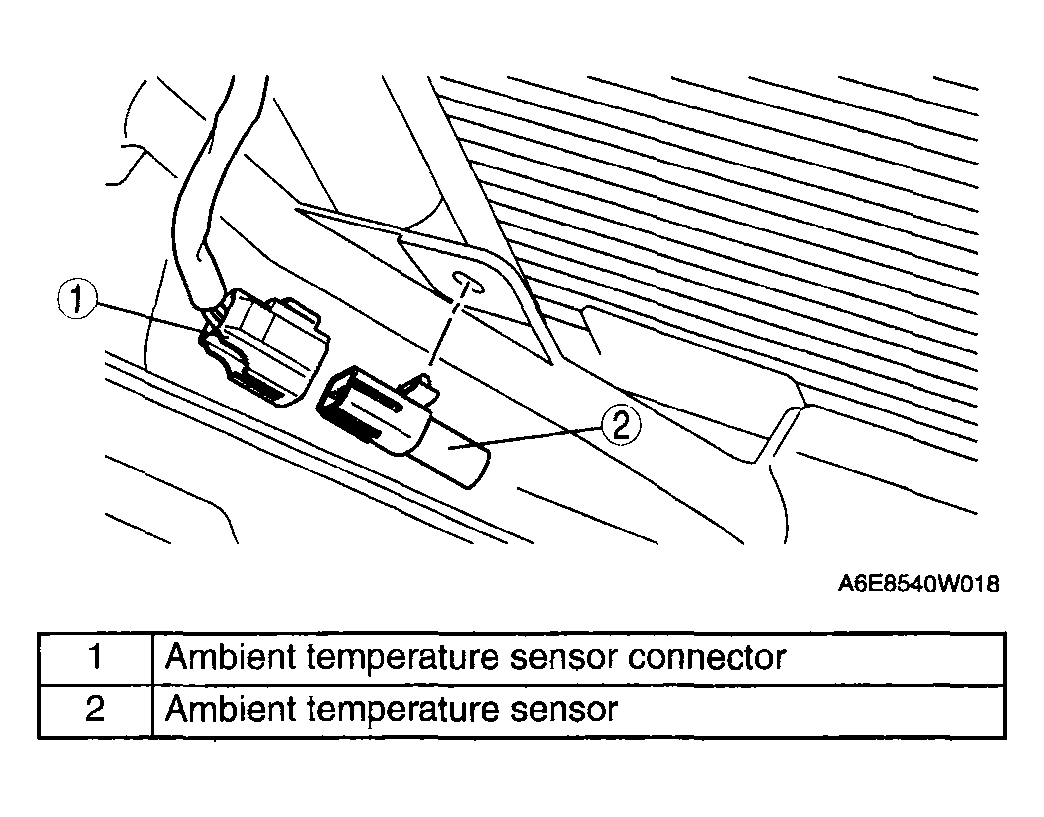

    Fig 1: Locating Ambient Temperature Sensor
    G04326797Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
