Light Switch Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in the table.

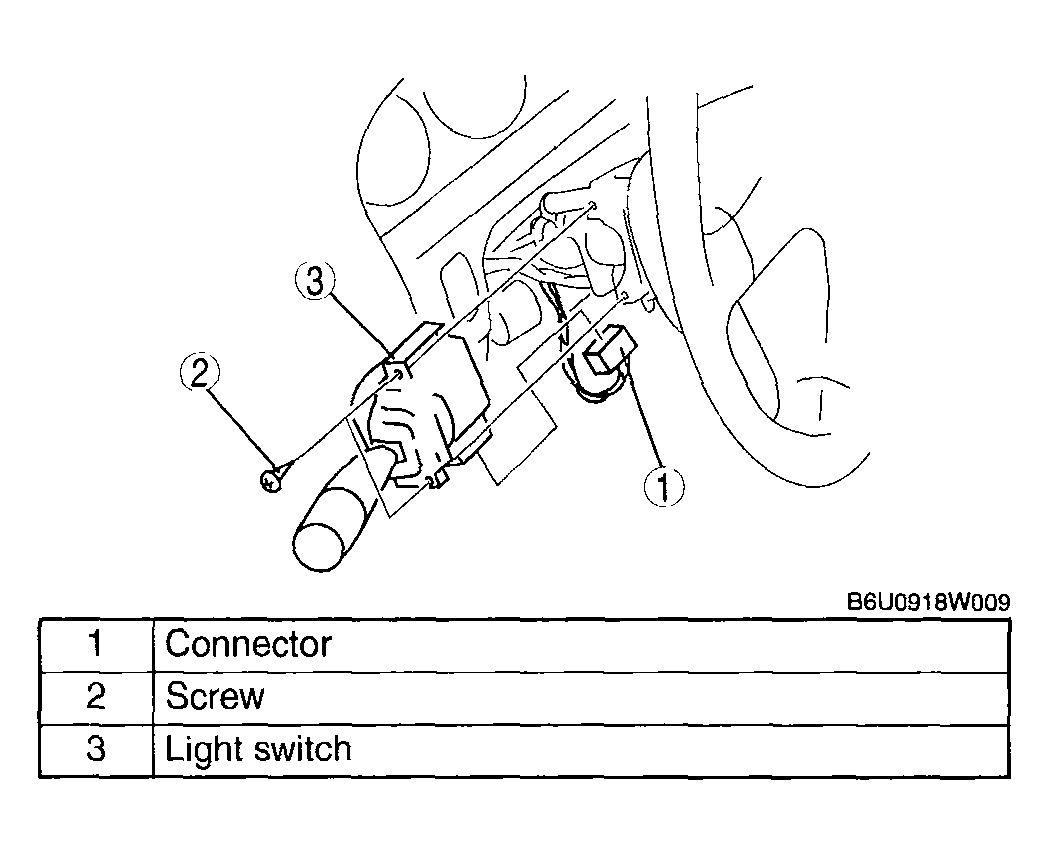

    Fig 1: Light Switch
    G04327546Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
