Inboard Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION [SPORT SEDAN]. )
  3. Remove in the order indicated in the table.

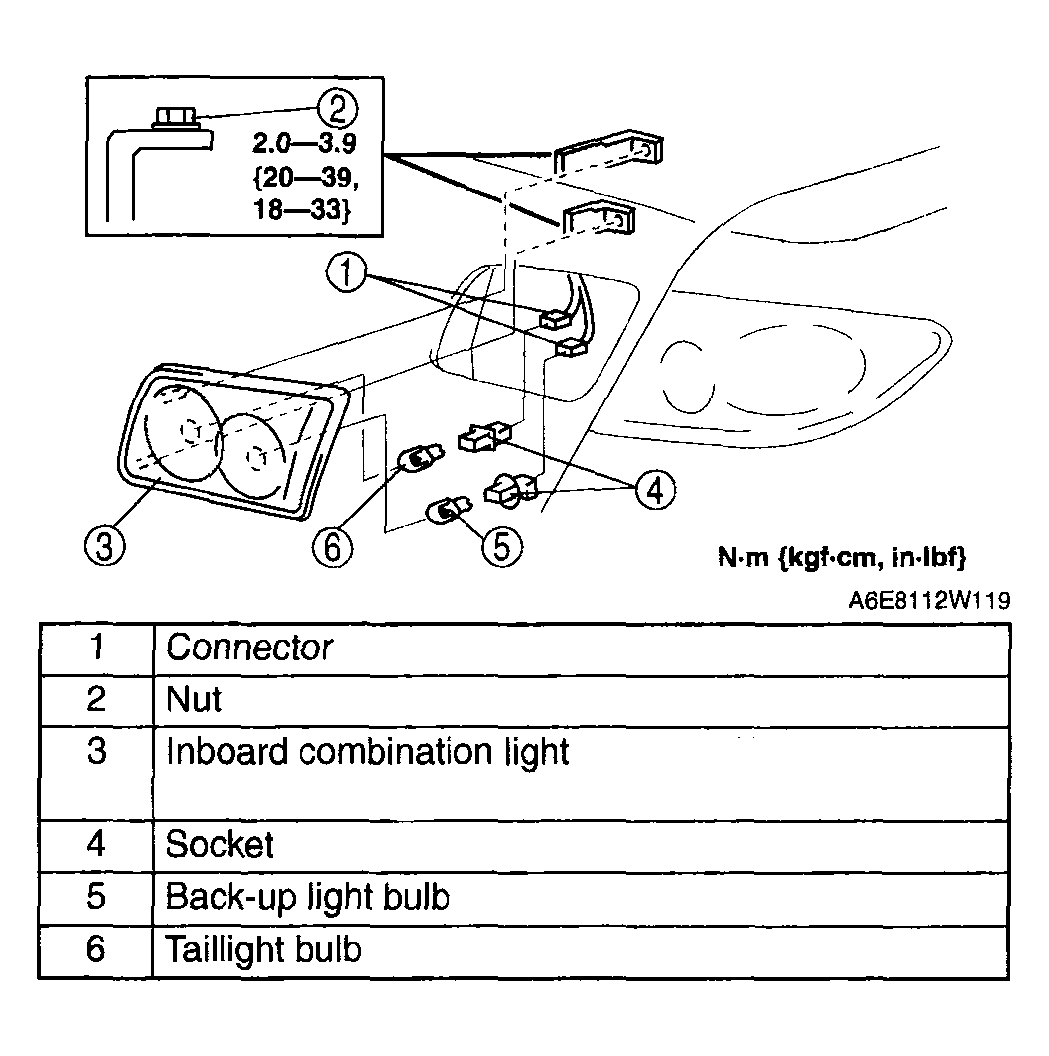

    Fig 1: Inboard Combination Light & Torque Specification
    G04327528Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
