Inboard Combination Light Installation Note

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

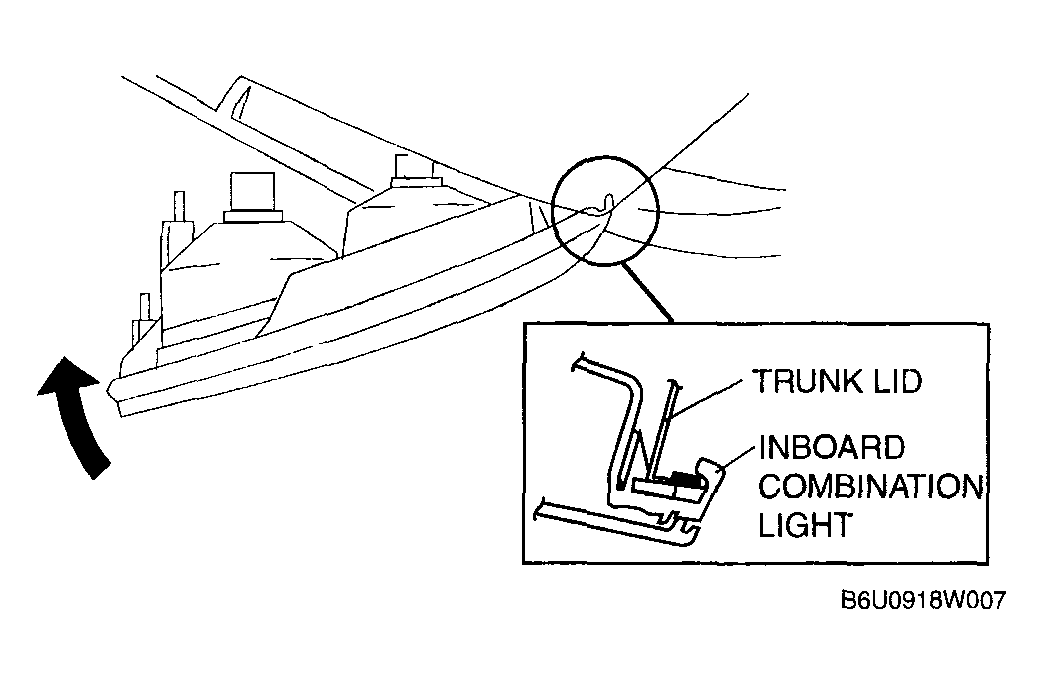

Insert the inboard combination light into the trunk lid as shown in the figure, then pivot it inward and fix in place.

Fig 1: Inboard Combination Light
Courtesy of MAZDA MOTORS CORP.

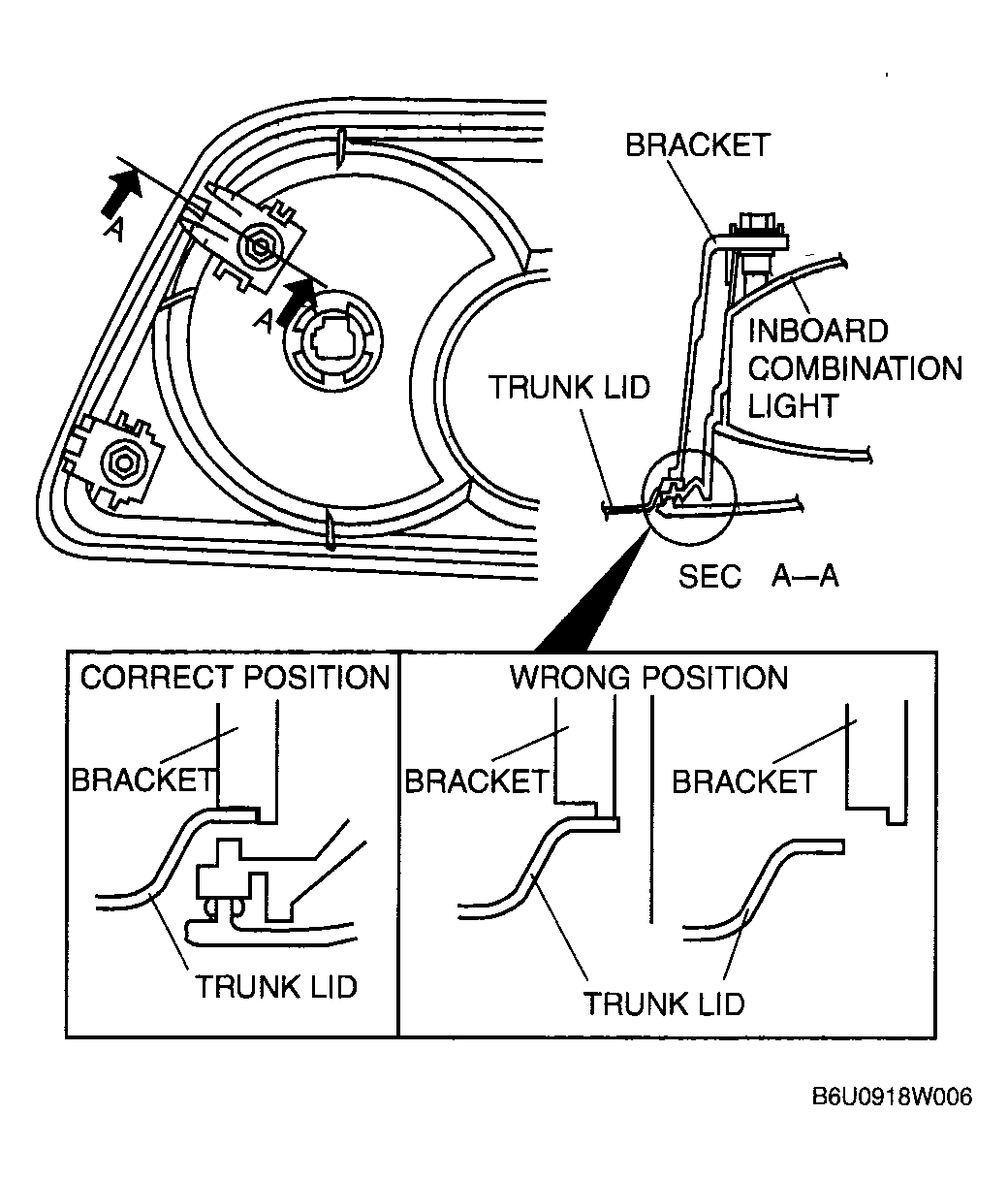

Place the bracket in the proper position as shown in the figure and press it to the trunk lid to attach.

Fig 2: Inboard Combination Light Bracket
Courtesy of MAZDA MOTORS CORP.
