Headlight Leveling Switch Inspection

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Verify that continuity between the headlight leveling switch terminals is as indicated in the table.
- If not as indicated in the table, replace the headlight leveling switch.

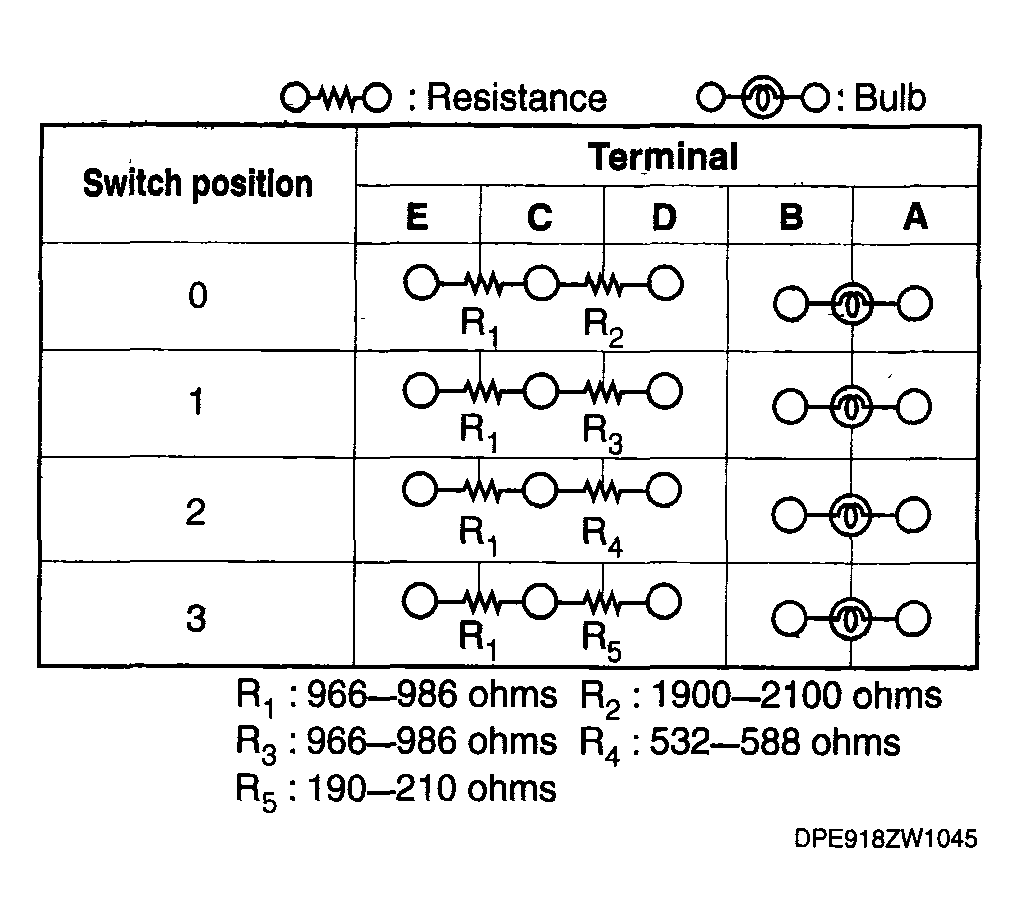

  Fig 1: Headlight Leveling Switch Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.

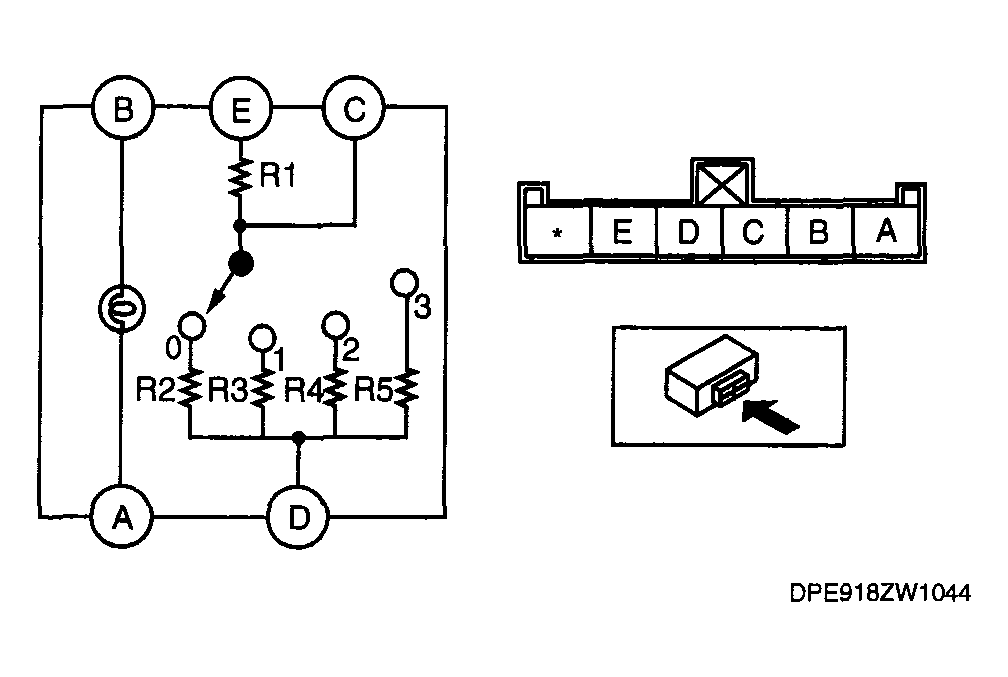

  Fig 2: Checking Continuity Between Headlight Leveling Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
