Front Map Light Inspection

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Inspect for continuity between the front map light terminals using an ohmmeter.
- If not as specified, replace the front map light.

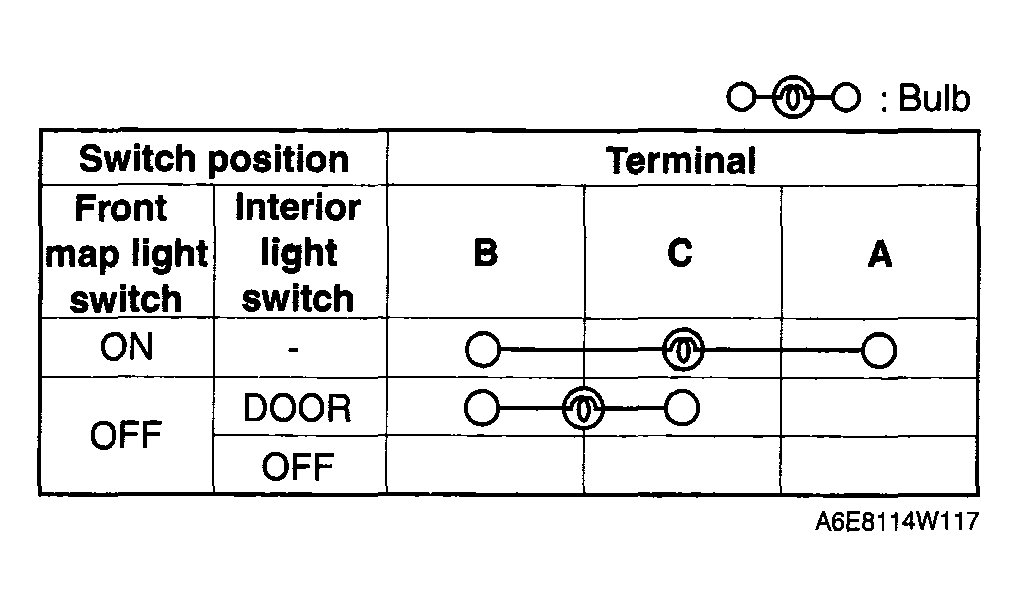

  Fig 1: Front Map Light Continuity Reference Chart
  Courtesy of MAZDA MOTORS CORP.
