Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in the table.

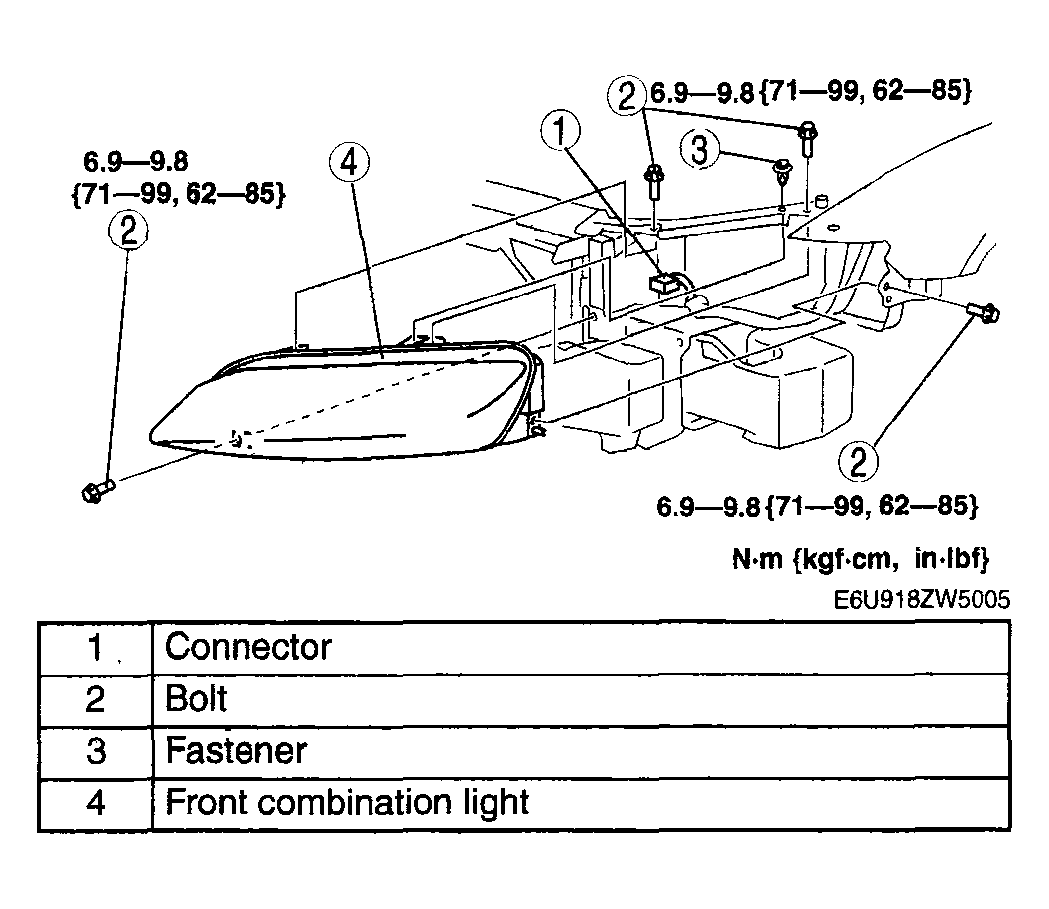

    Fig 1: Front Combination Light & Torque Specification
    G04327511Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the headlight aiming. (See HEADLIGHT ADJUSTMENT ).
