Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable,
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION. )
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION. )
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION. )
    CAUTION:
    • The clock spring is generally not to be removed from the combination switch as may result in a malfunction of the steering angle sensor. However, remove it only when replacing the clock spring as a single unit by referring to CLOCK SPRING REMOVAL/INSTALLATION. (See CLOCK SPRING REMOVAL/INSTALLATION. )
  5. Remove in the order indicated in the table.

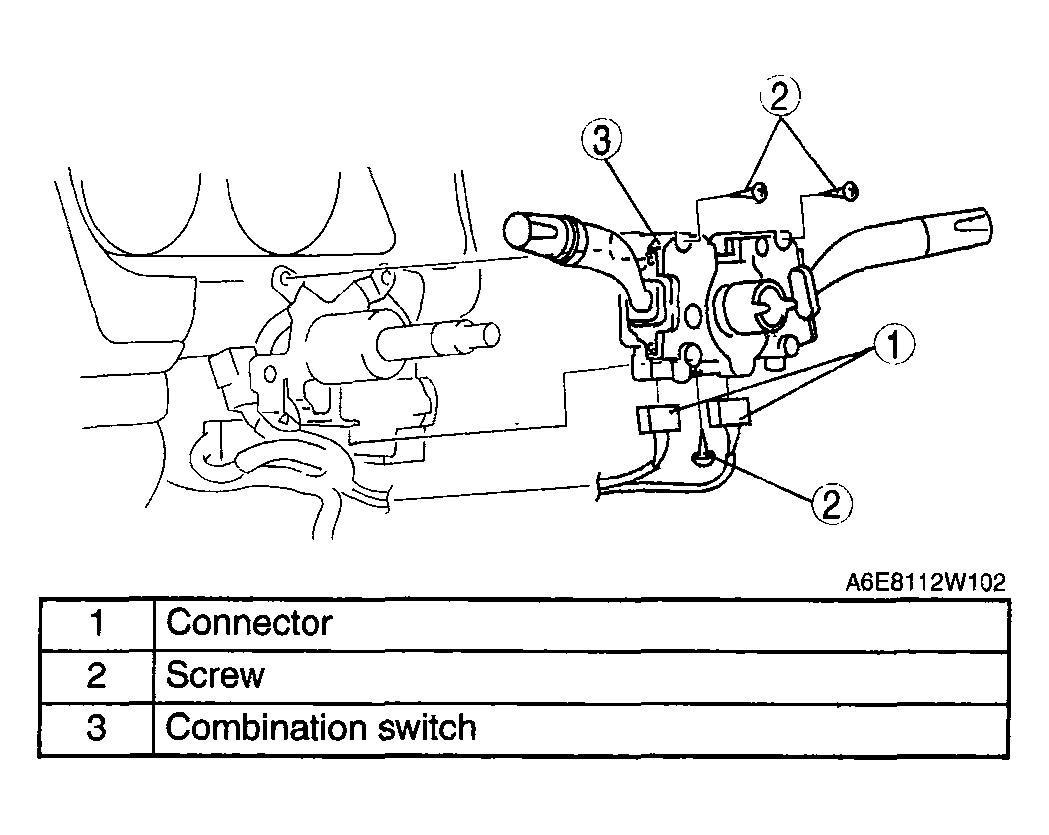

    Fig 1: Combination Switch
    G04327543Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
