Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The clock spring is generally not to be removed from the combination switch as may result in a malfunction of the steering angle sensor. However, remove it only when replacing the clock spring as a single unit by referring to CLOCK SPRING REMOVAL/INSTALLATION. (See CLOCK SPRING REMOVAL/INSTALLATION. )
  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

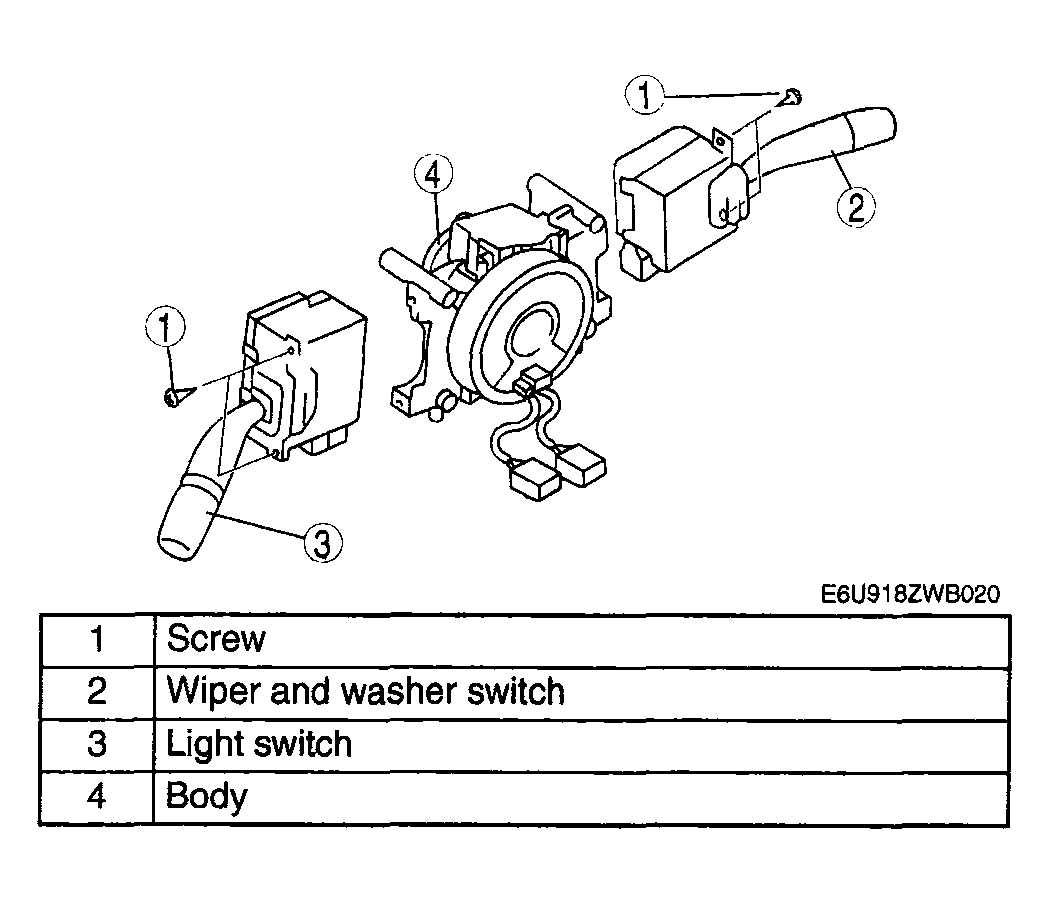

    Fig 1: Combination Switch
    G04327544Courtesy of MAZDA MOTORS CORP.
