Back-Up Light Switch Removal/Installation [G35M-R]

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Drain the oil. (See TRANSAXLE OIL REPLACEMENT [G35M-R]. )
  3. Remove in the order indicated in the table.

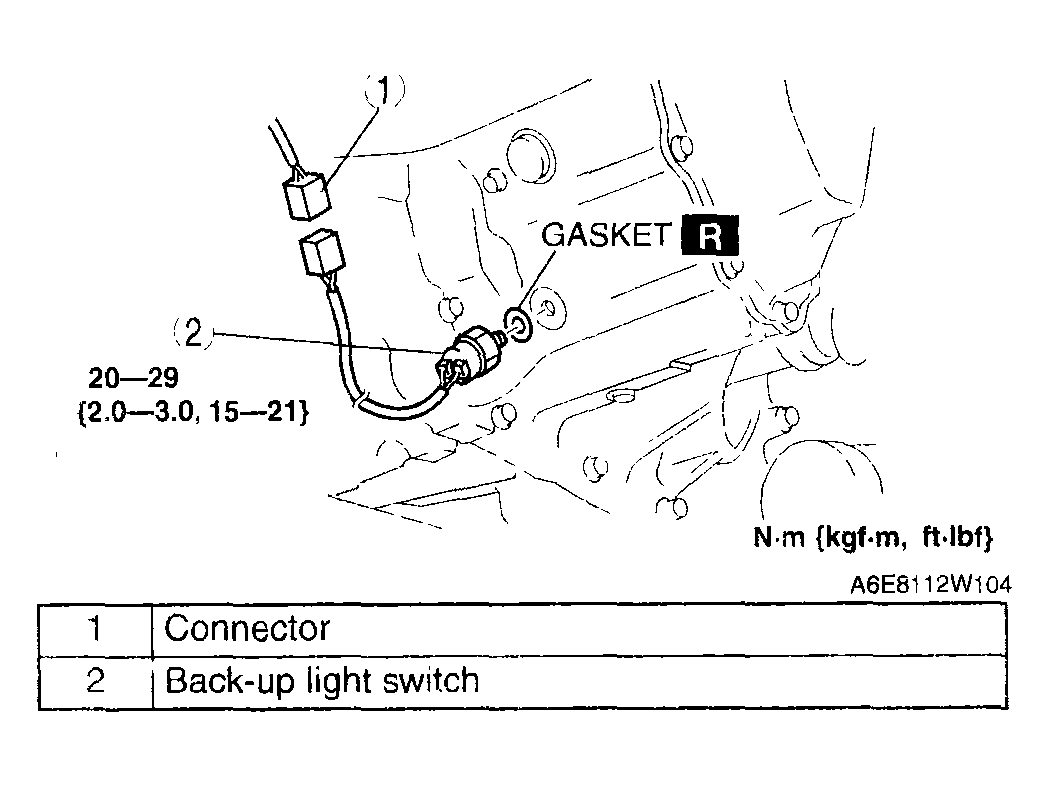

    Fig 1: Back-Up Light Switch & Torque Specification (G35M-R)
    G04327539Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Refill the oil. (See TRANSAXLE OIL REPLACEMENT [G35M-R]. )
