Power Brake Unit Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.
  4. After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION .)

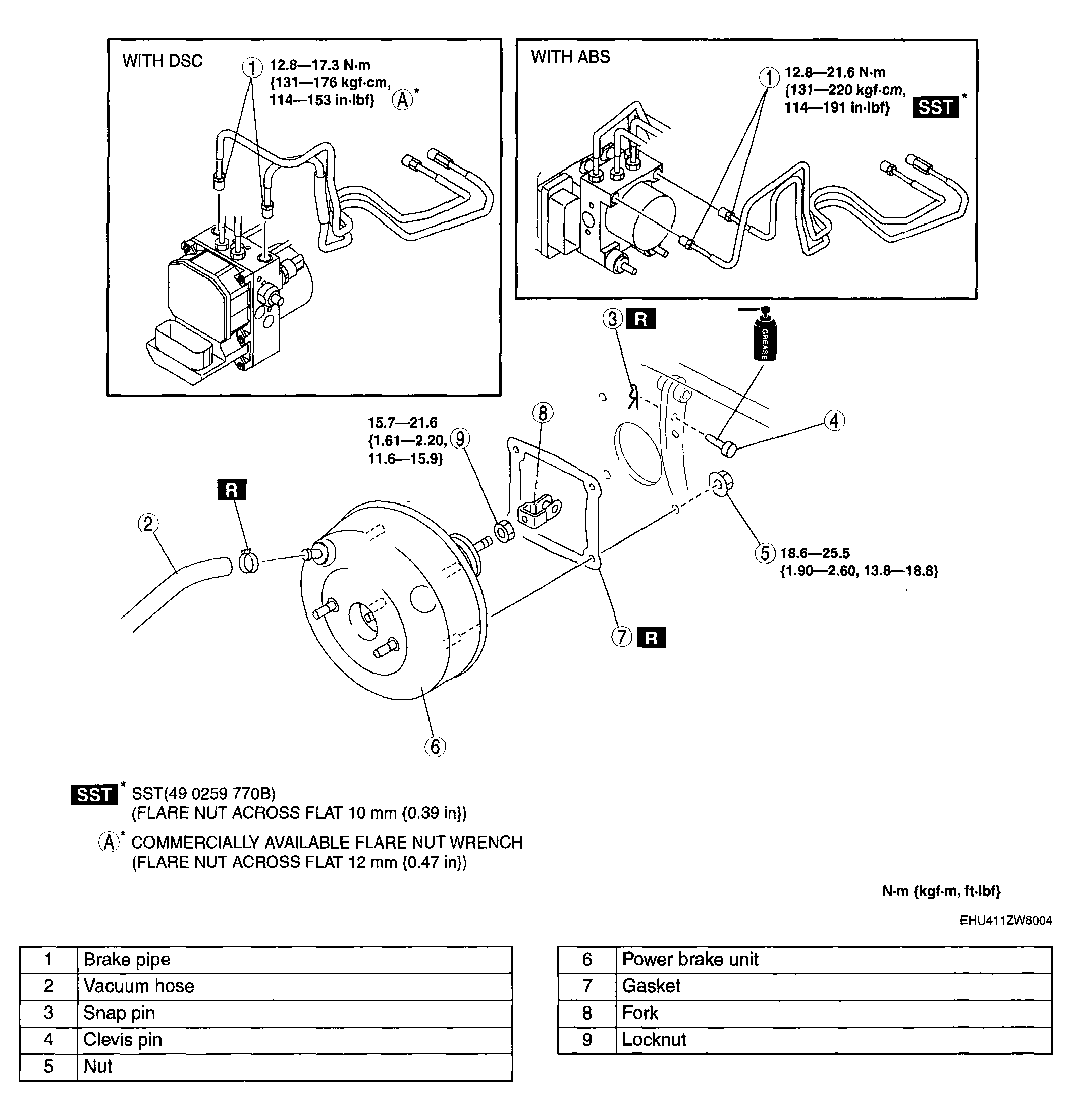

    Fig 1: Removing/Installing Power Brake Unit With Torque Specifications
    G04563380Courtesy of MAZDA MOTORS CORP.
