Front Brake (Disc) Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in Fig 1.
  2. Install in the reverse order of removal.
  3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.

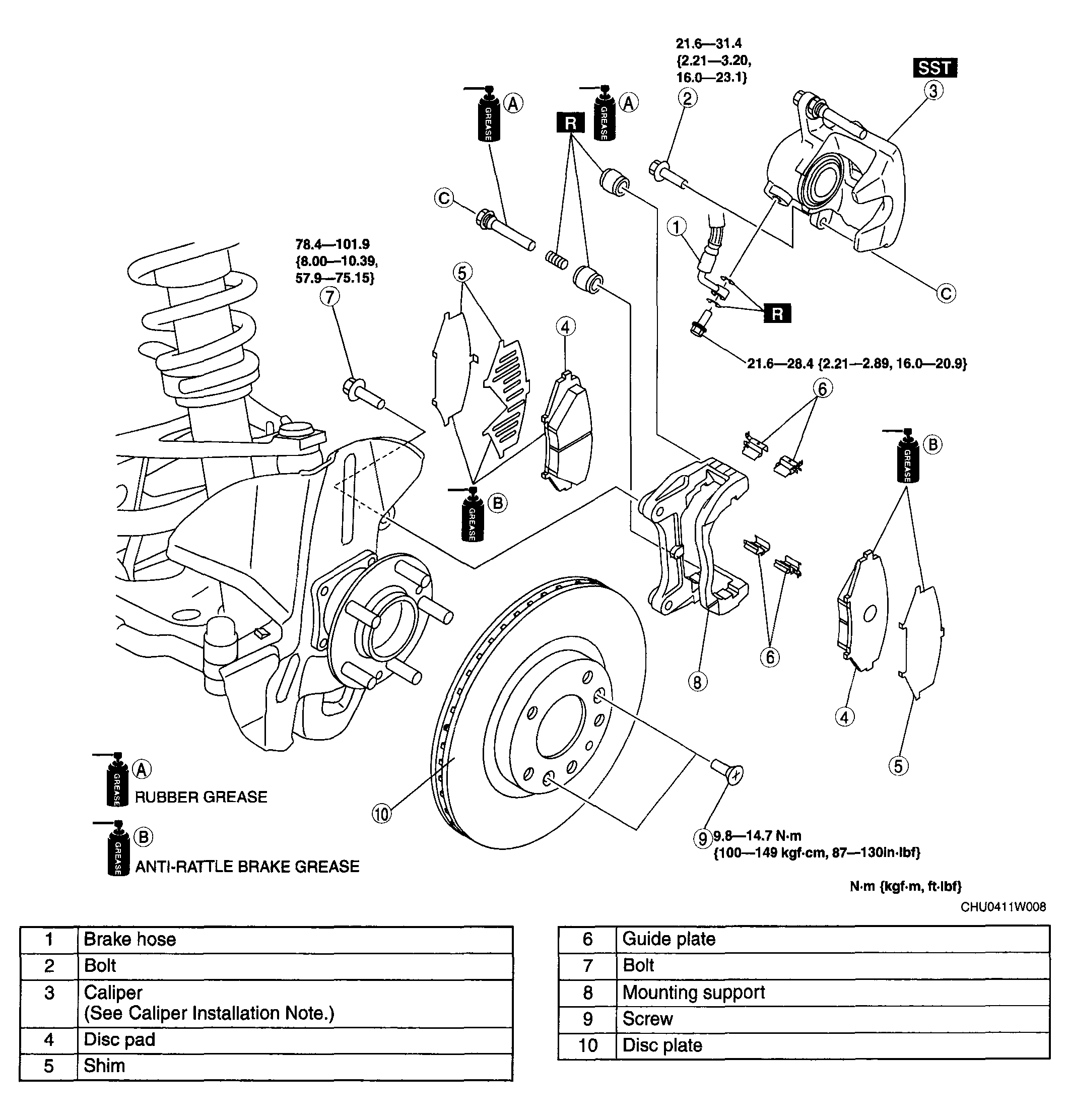

    Fig 1: Removing/Installing Front Brake (Disc) With Torque Specifications
    G04563385Courtesy of MAZDA MOTORS CORP.
