LCD Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION. )
2. Console (See CONSOLE REMOVAL/INSTALLATION. )
3. Center panel module (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
4. Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION. )
Remove in the order indicated in Fig 1. I

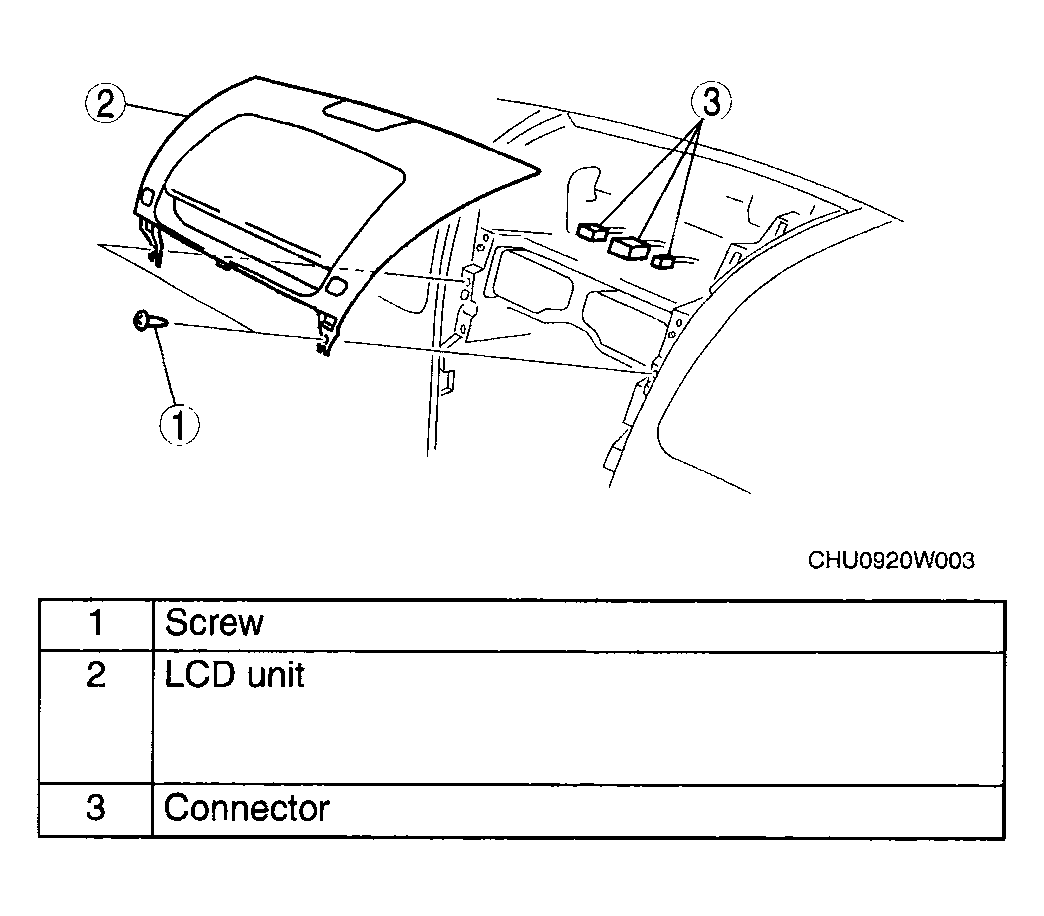

Fig 1: Removing LCD Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
