Front Tweeter Inspection: Standard

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify the resistance between front tweeter terminals.
- If the continuity is as indicated in Fig 1, replace the front tweeter.

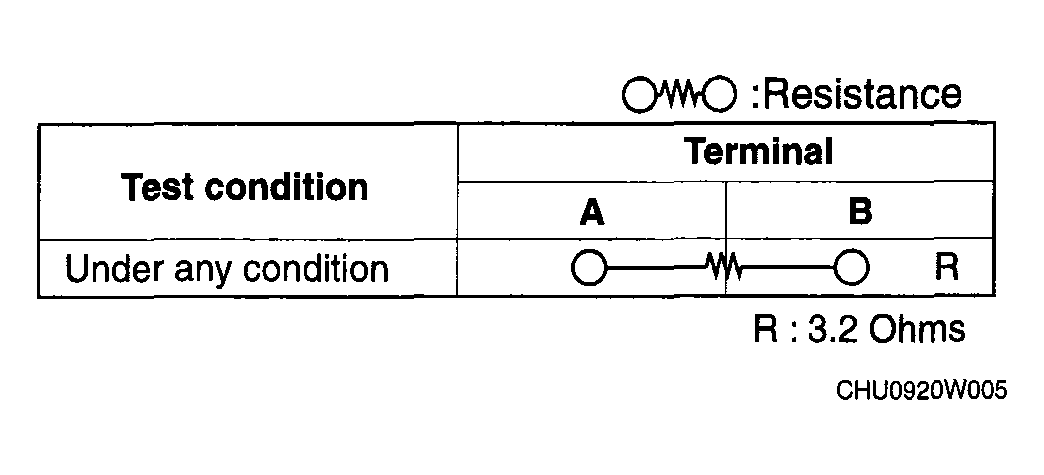

  Fig 1: Front Tweeter Resistance Chart
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Front Tweeter Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
Connect a 1.5 V battery to the front tweeter and verify that noise is sound from the front tweeter.
- If no sound is output, replace the front tweeter.
