Socket Removal Note

WARNING: This page is about a different car, the 2008 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Insert a tape-wrapped flathead screwdriver into the socket hole and push on the ring projection to lift the socket outward.

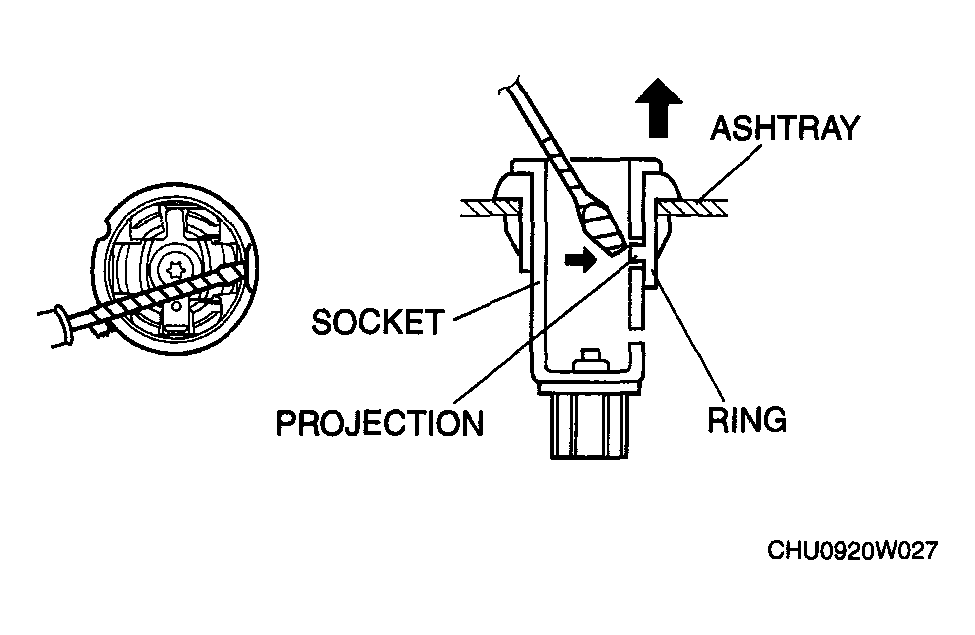

Fig 1: Inserting Tape-Wrapped Screwdriver Into Socket Hole & Pushing On Ring Projection
Courtesy of MAZDA MOTORS CORP.
Lift out the socket until the ring projection locks into the lower socket hole as shown in the figure.

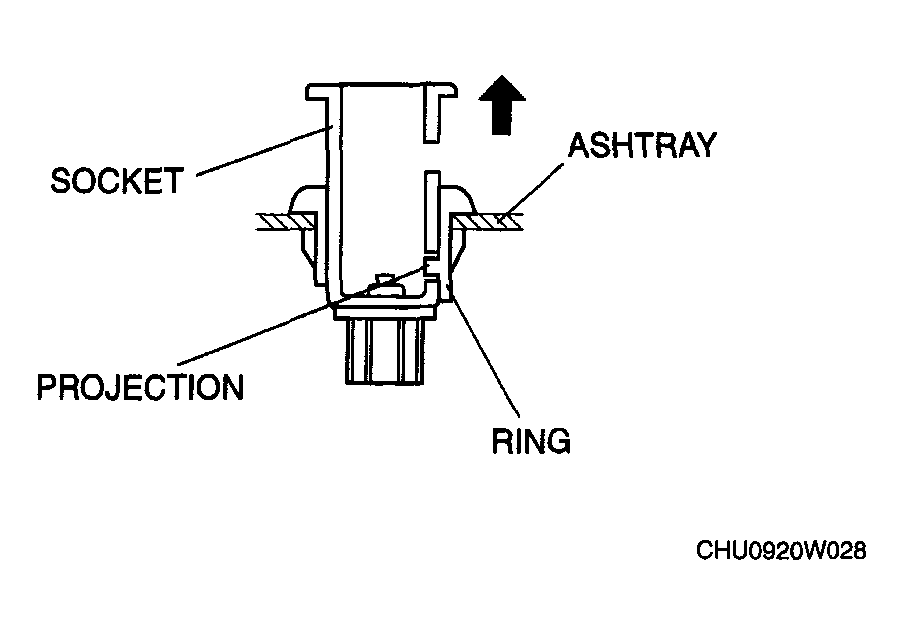

Fig 2: Lifting Out Socket
Courtesy of MAZDA MOTORS CORP.
From the rear of the ashtray, insert a tape-wrapped flathead screwdriver between the socket and the ring as shown in the figure.
While lifting the ring projection with the flathead screwdriver, push out and remove the socket.

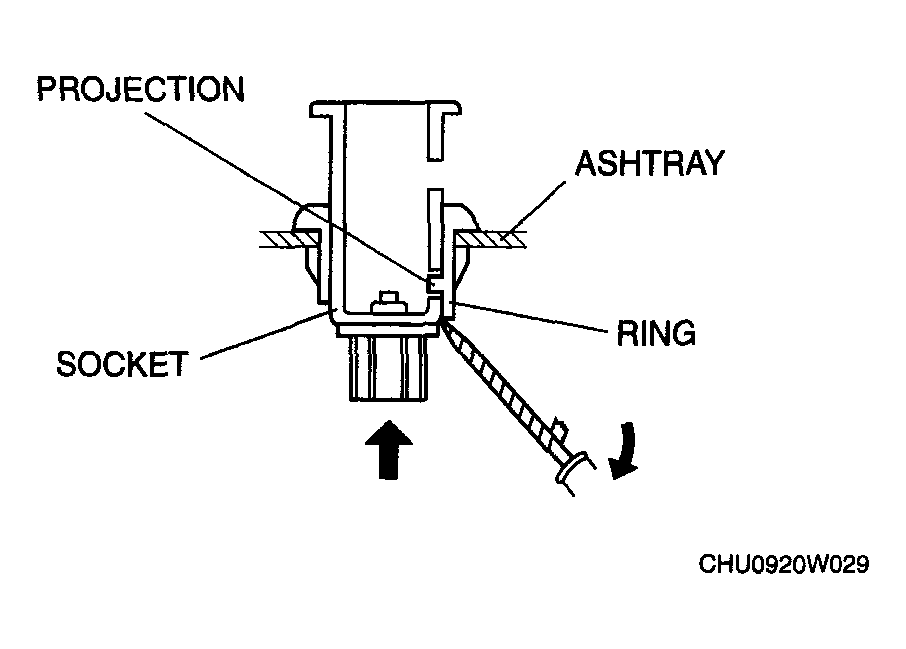

Fig 3: Inserting Tape-Wrapped Screwdriver Between Socket & Ring
Courtesy of MAZDA MOTORS CORP.
