Climate Control Unit Removal/Installation [L3 With TC]

WARNING: This page is about a different car, the 2007 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center panel. See CENTER PANEL UNIT REMOVAL/INSTALLATION.
Remove the screws and climate control unit.
Install in the reverse order of removal.

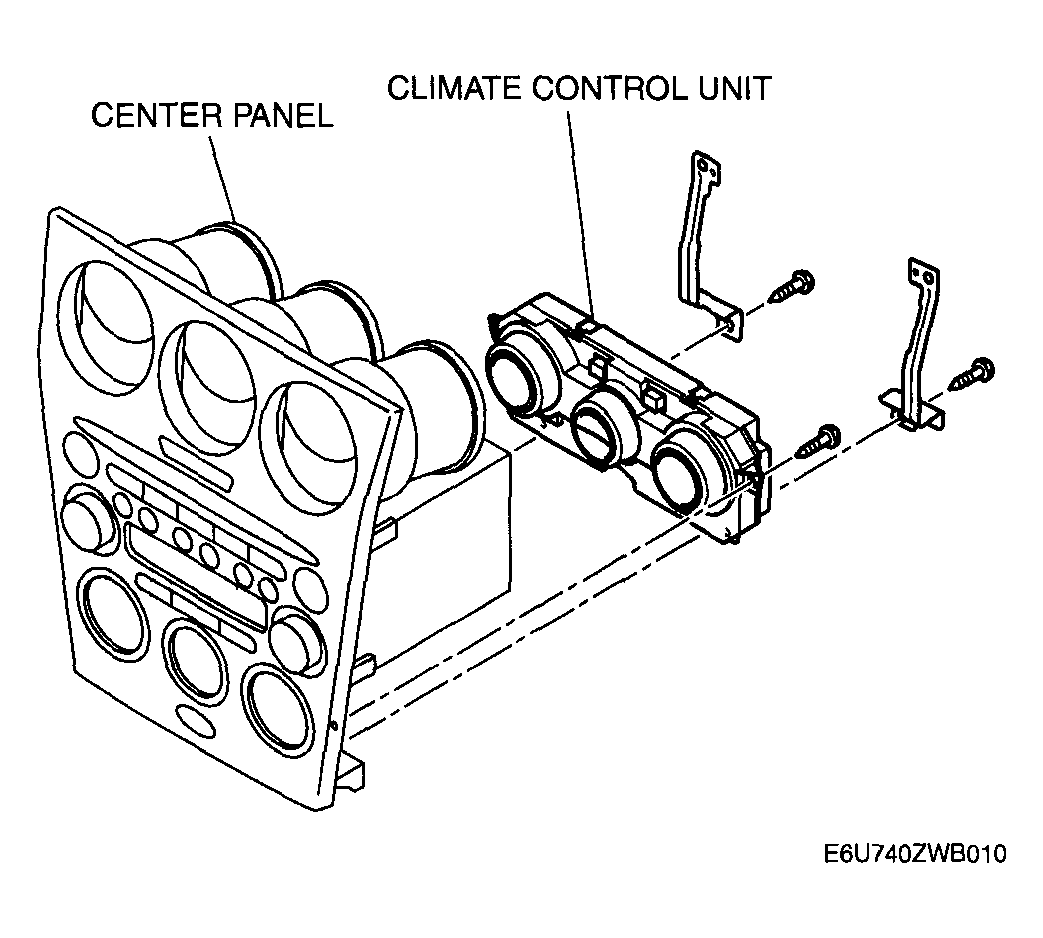

Fig 1: Locating Climate Control Unit (L3 With TC)
Courtesy of MAZDA MOTORS CORP.
