DTC P0327 [L3]: Notes
DTC P0327 [L3] DETECTION CONDITIONS AND POSSIBLE CAUSES
| DTC P0327 |
KS circuit low input |
| DETECTION CONDITION |
- The PCM monitors input signal from the KS when the engine is running. If the input voltage at PCM terminals 2U or 2V is below 0.2 V
for 5s
the PCM determines that the KS circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- KS malfunction
- Connector or terminal malfunction

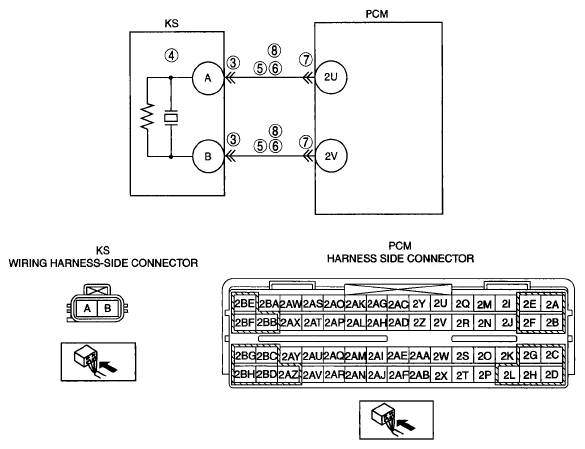

- Open circuit or short to ground in wiring harness between KS connector terminal A and PCM terminal 2U
- Open circuit or short to ground in wiring harness between KS connector terminal B and PCM terminal 2V
- Short KS two wires
- PCM malfunction
|
|
|
