Second-Row Seat Removal/Installation

  1. Remove the covers.
  2. Remove the bolts, then remove the second-row seat.
  3. Install in the reverse order of removal.

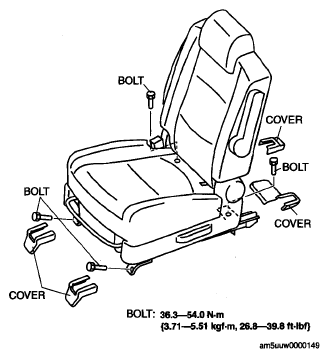

    Fig 1: Seat Bolts And Cover With Torque Specifications
    G05545746Courtesy of MAZDA MOTORS CORP.
