Steering Shaft Inspection

Inspect the column bearing for excessive play and damage.
Verify that the measurement of the steering shaft indicated in the figure is as specified.
- If not within the specification replace the steering shaft component.
  Steering shaft length 315-320 mm {12.41-12.59 in}

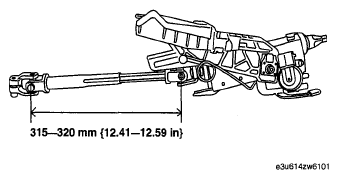

  Fig 1: Identifying Length Of Steering Shaft With Specifications
  Courtesy of MAZDA MOTORS CORP.
Inspect the tilt/telescope mechanism operation for the following.
1. Tilt/telescope lever moves smoothly from the lock to the unlock position.
2. Steering shaft is fixed firmly when the tilt/telescope lever is locked.
  - If there is any malfunction, replace the steering shaft.

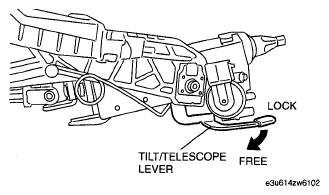

    Fig 2: Inspecting Tilt/Telescope Mechanism Operation
    Courtesy of MAZDA MOTORS CORP.
