Locknut (on Adjusting Cover) Assembly Note

CAUTION:
  • Be sure that the adjusting cover will not turn together with the locknut.
  1. Fix the adjusting cover and tighten the locknut.

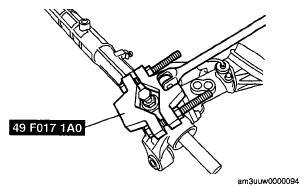

    Fig 1: Identifying Special Tool
    G04956225Courtesy of MAZDA MOTORS CORP.
  2. Measure the pinion torque using the torque wrench.

    Pinion shaft rotation torque

    Center of rack ± 90°: 0.88-1.48 N.m {8.98-15.0 kgf.cm, 7.79-13.0 in.lbf}

  3. If not as specified, remove the locknut and adjust the adjust cover.

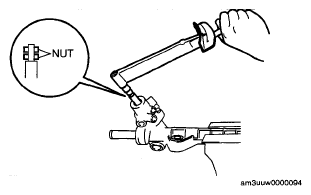

    Fig 2: Measuring Pinion Torque
    G04956226Courtesy of MAZDA MOTORS CORP.
