Rotor Assembly Note

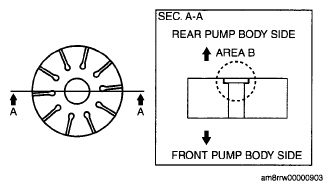

  1. Install to the front pump body so that area B of the groove is on the rear pump body side as shown in the figure.
    Fig 1: Identifying Front Pump Body Groove Area
    G04956238Courtesy of MAZDA MOTORS CORP.
